Description
WPTB Universal pressure transmitter adopts diffused silicon pressure sensor as pressure sensing element. Through internal ASIC, the millivolt signal of sensor is transmitted into standard current signal. WPTB can be directly connected with computer interface card, control instruments, intelligent meters or PLC conveniently. Long-distance transmission can use current output. WPTB features with small size, light weight, all stainless steel sealing structure and ability to work in corrosive environments. The product is easy to install and has extremely high vibration and shock resistance. WPTB is widely used in process control, aviation, aerospace, automotive, medical equipment, HVAC field, etc.
Advantage
■316L stainless steel diaphragm structure
■ High precision, all stainless steel structure
■ Small size and light weight
■ Strong anti-interference, good long-term stability
■ Diversified formal structures, easy installation and use
■ Wide measuring range, can measure absolute pressure, gauge pressure and sealed gauge pressure
■ Excellent vibration and shock resistance
■ Zero, full scale span adjustable
Application
■ Process control
■ Aviation and aerospace
■ Automotive, medical equipment
■ Piping system

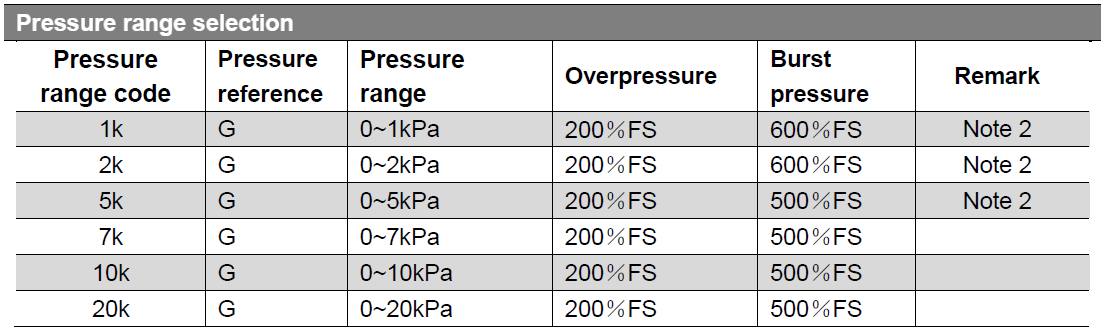

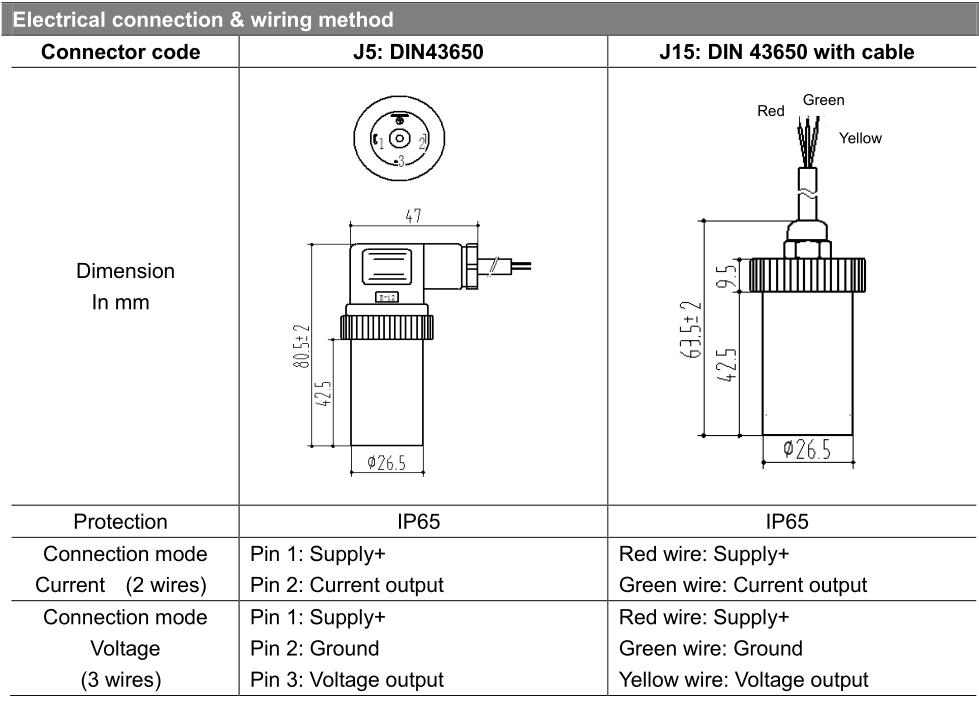

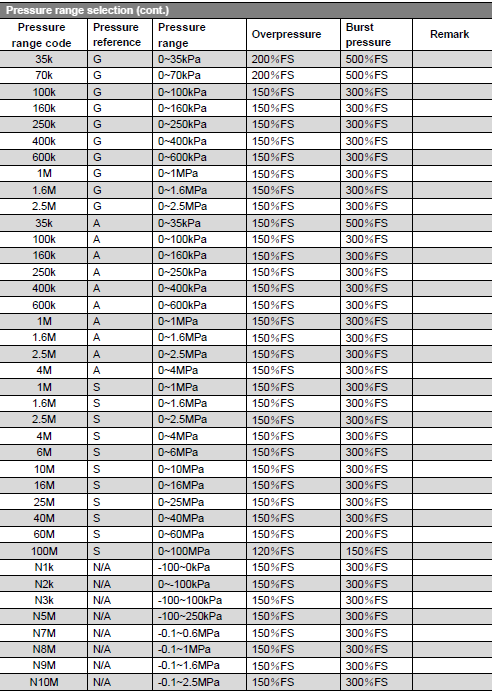

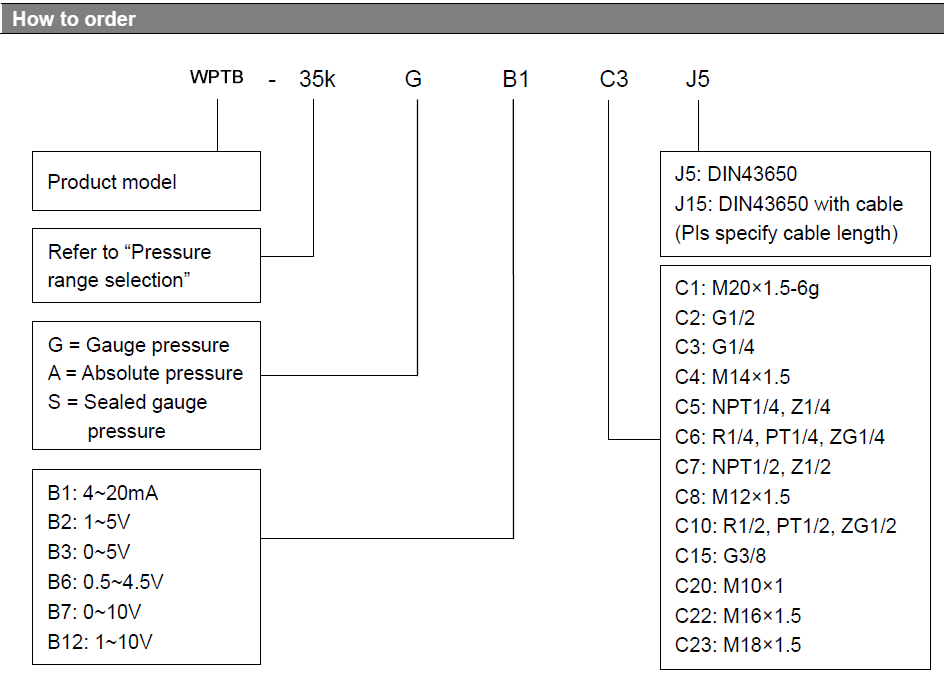

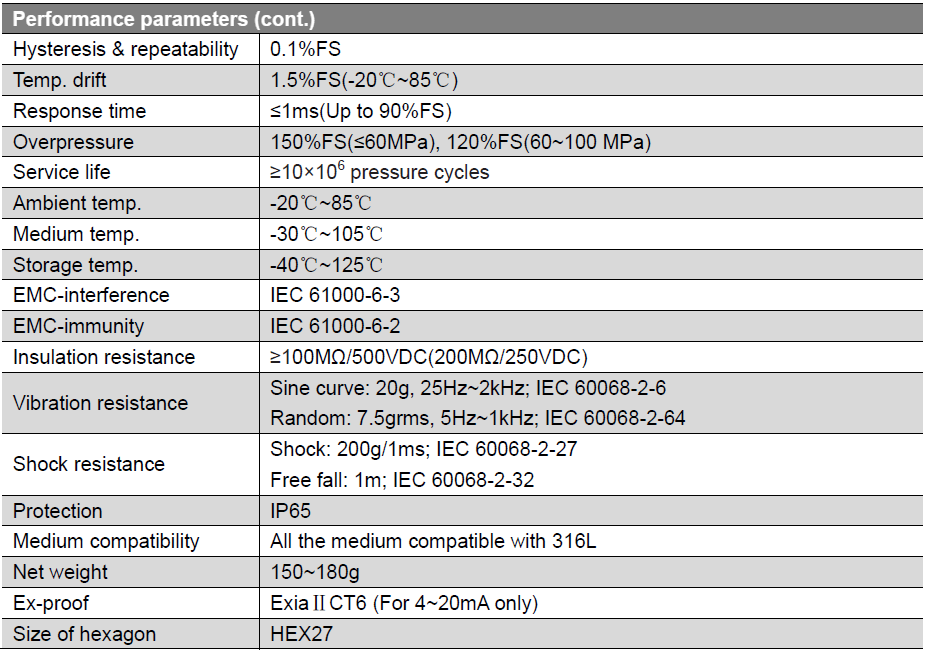

Technical Parameter

.png)
|
.png)
.jpg){kind=small}
