Description

WPTB-Y industrial pressure/level transmitter is a standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. The most important specification for industry application is long term stability. WPTB-Y is designed for industry application with perfect long term stability.

Advantage

• 316L stainless steel diaphragm structure

• High precision stainless steel structure

• Micro amplifier, voltage and current signal output.

• Strong anti-interference and long term stability.

• Diversified forms, convenient installation and use

• The range is wide and the absolute pressure, gauge pressure and density can be measured.

• Sealing reference pressure

• Resistance to vibration and impact

• Zero and full range adjustable

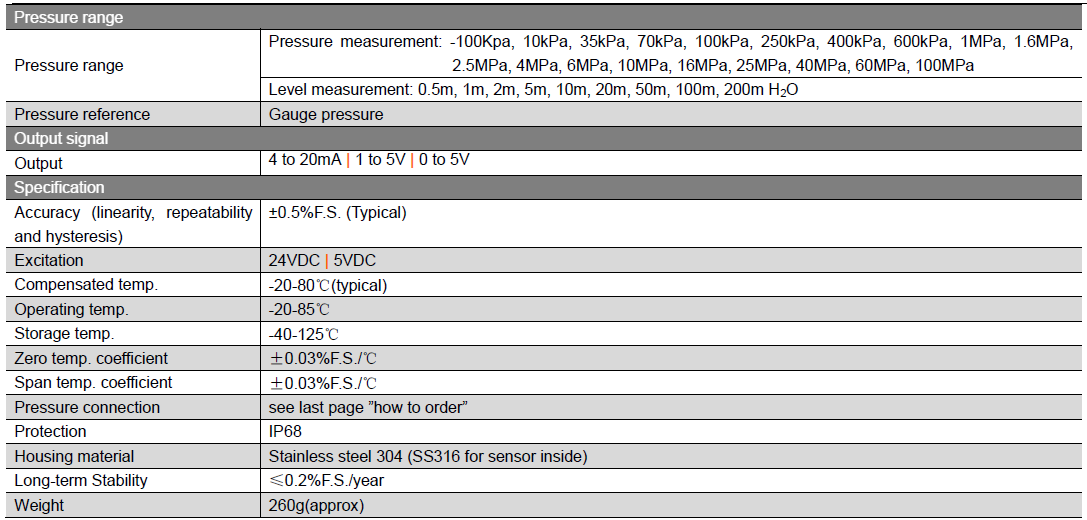

Technical Parameter
