Description

WPTB-T High Temperature Pressure Transmitter uses high temperature resistant pressure sensor as the signal measuring element. The pressure of measured medium is transmitted to the sensor through heat dissipation structure. The high precision signal processing circuit is located inside the stainless steel shell, converting the output signal of the sensor to standard output signal. The product has passed rigorous tests and aging screening of the components, semi-finished products and finished products. The performance is stable and reliable, enabling long-term stability when used in the pressure measurement of high temperature medium.

Advantage

 316L stainless steel isolation diaphragm structure
 Imported high temperature resistant chip
 Wide range of applicable medium temperature
 Strong anti-interference ability and long-term stability
 Direct contact for measurement of high temperature medium, improving pressure response frequency
 Rich pressure ranges provided, including low, medium and high pressure ranges
 Anti-vibration, shock resistant and corrosion resistant

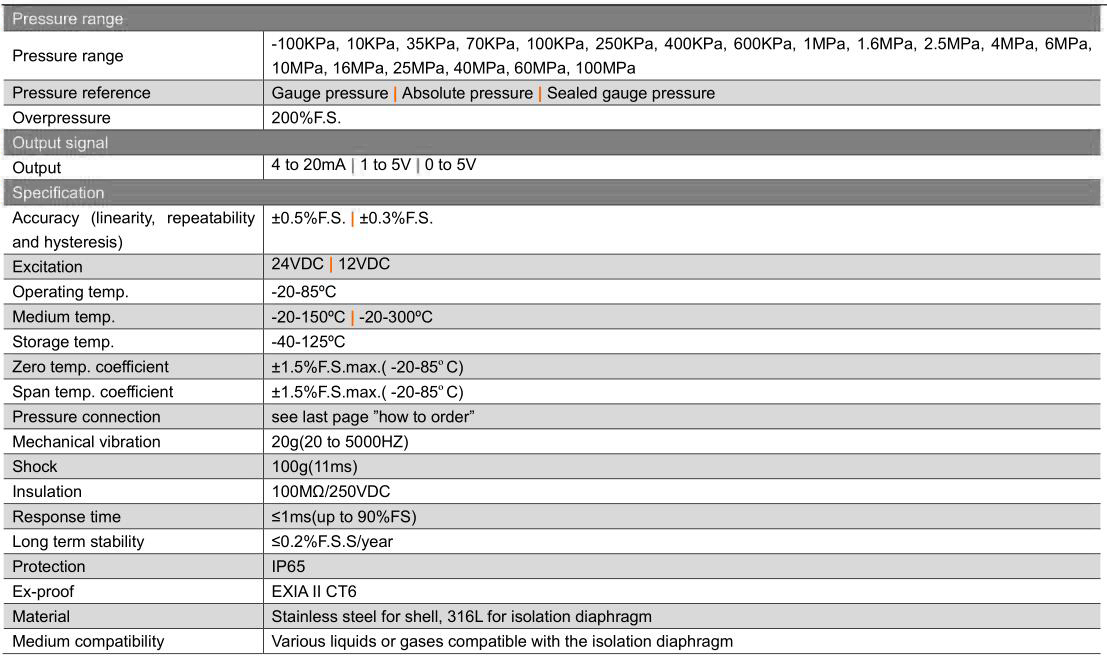

Technical Parameter
