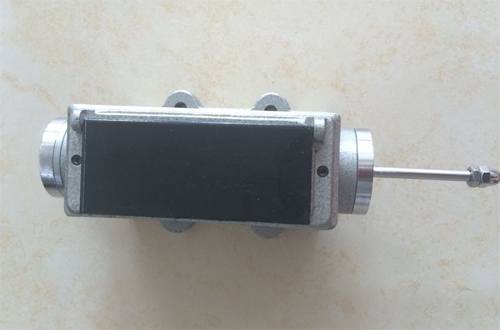

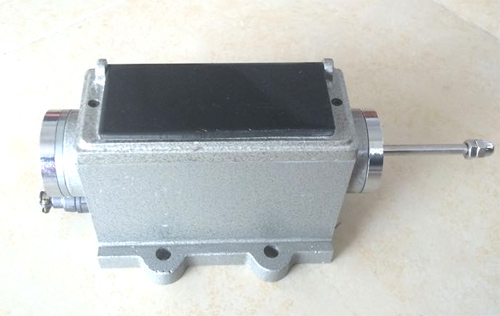

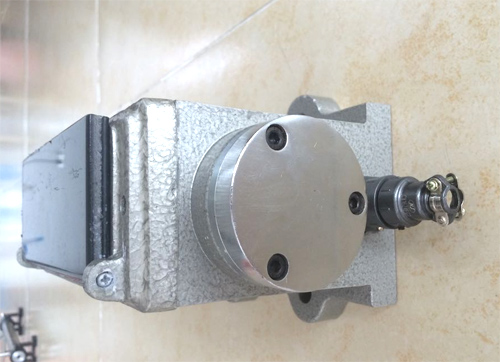

TD-2 type thermal expansion sensor is mainly used in measuring cylinder expansion diaplacement of turbine. It has features such as good antijamming capacity, good linearity, simple structure, etc.
Technical index:
1. Measuring range: 0～50mm (measuring range is decided by user)
2. Accuracy: ± 1% (full measuring range)
3. Environment temperature: -20 ℃ ～+100 ℃
4 .Linear excitation: 1500Hz, 10 ~ 20VAC
5. Impedance: 250Ω±50Ω (1500Hz)
6. Linearity: ±1.5% of full measuring range
7. Operating temperature: -10 ~ 100 ℃
8. Relative humidity: ≤ 90% non-condensing
|
