Eddy current sensor can be widely used in electricity, petroleum, chemical, metallurgy, and other industries.
Composition
SDW-5 type eddy current sensor is composed of SDW-5 probe, SDW-5 extension cable, and SDW-5 proximitor.
SDW-5 probe
Probe is composed of inductance, protection cover, stainless steel shell, high-frequency cable and high frequency connector. Specifications: Φ3ｍｍ, Φ5ｍｍ, Φ8ｍｍ, Φ11ｍｍ, Φ18ｍｍ, Φ22ｍｍ, Φ25ｍｍ, Φ32ｍｍ, Φ36ｍｍ, Φ50ｍｍ, Φ60ｍｍ.
SDW-5 extension cable
Specifications: 4ｍ, 4.5ｍ, 8ｍ, 8.5ｍ

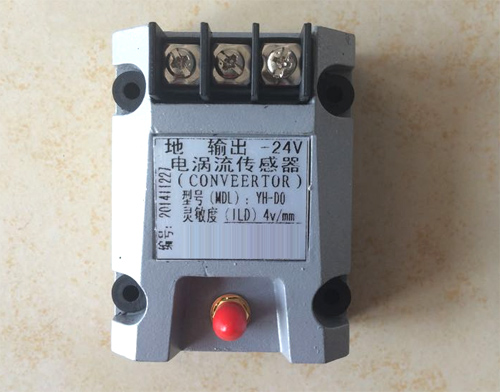

SDW-5 proximitor
Proximitor is core component of system. Specifications: Φ8ｍｍ, Φ11ｍｍ, Φ25ｍｍ. |
Technical parameters of SDW-5 eddy current sensor:
|
SensorModel
|
SDW-5Φ8 mm
|
SDW-5 Φ11 mm
|
SDW-5 Φ25 mm
|
|
Probe diameter (mm)
|
8
|
11
|
27.1
|
|
Static linear range (mm)
|
2
|
4
|
12.7
|
|
Static sensitivity ( V/mm ) ≤1.0%
|
8
|
4
|
0.8
|
|
Static amplitude linearity
|
±1.0%
|
±2.50%
|
|
Dynamic amplitude linearity
|
±10%
|
|
Static zero error
|
0.5%
|
|
Static amplitude stability
|
0.5%
|
|
Dynamic reference sensitivity error
|
3.0%
|
|
Static amplitude repeatability
|
1.0%
|
|
Frequency response
|
0 ～ 5KHz(0.5dB)
|
|
Temperature excursion
|
0.1%
|
|
Measurement range neutral point gap (mm) ±5%
|
1.8
|
3
|
9
|
|
Measurement range natural-point voltage ( V ) ±5%
|
-10
|
-10
|
-7.08
|
|
Material and shape of observed matter
|
metal material, standard material is 45 ＃steel, axial, panel, measuring dial
|
|
Axial diameter≥ (mm)
|
80
|
——
|
——
|
|
Measuring dial diameter≥ (mm)
|
18
|
30
|
70
|
|
Supply voltage ( V )
|
-20~26Vdc
|
|
Power consumption ( mA )
|
12
|
12
|
15
|
|
Output load
|
10KΩ
|
|
Environmental temperature
|
( 20±5 ) ℃
|
|
|
Product guide:
Code SDW-5-A□□□-B□□-C□□-D□□
Probe diameterA□□□: 005 (Ф5mmSensor)008 (Ф8mmSensor) 011* (Ф11mmSensor)
018 (Ф18mmSensor)025 (Ф8mmSensor)050 (Ф50mmSensor)108 (Ф8mm sensor with measuring bar)
Length of screw tube B□□: 01——40mm; 02*——60mm; 03——80mm (or user defined)
Cable length C□□: 01*——5m; 02——8m
Cable armouring D□□: 01——with armor; 02*——without armor
If there are any special requirements, please contact us
|
