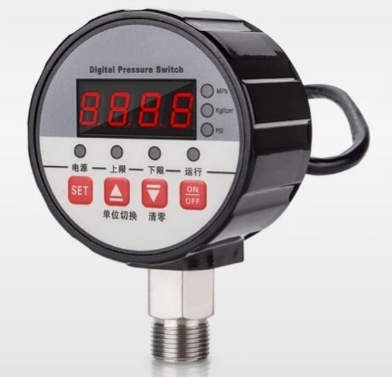

WPTG-2 digital pressure switch is a set of pressure measurement, display, control in one of the instrument. The product can be used to measure the pressure of various gases, liquids and other media, and can set alarm points to achieve continuous pressure measurement and switching control. When the pressure reaches the predetermined value, the output control signal can be switched on or off to control the equipment, so as to realize the purpose of automatic control. The product has the advantages of high precision, hysteresis setting, fast response, stable and reliable performance, easy operation and simple and flexible installation. It is a technology of microcomputer used in automatic pressure control.

The product is also an alternative to the traditional pointer type pressure gauge.

Technical Parameters:

• Scope of Measurement: 0-0.1/0.25/0.6/1.0/1.6/2.5/6/10/16/25/40/60/100MPa
• Accuracy: 0.25%
• Control Output: relay SPDT, can be set within full range)
• Contact Capacity: 220V/3A
• Power Consumption: 1W
• Input Voltage: 12V/24V/220V Optional
• Pressure Connection: M20*1.5 (can be customized)
• Wetted Material: 304 stainless steel (can be customized)
• Display Unit: MPa/KG/PSI
• Operating Temperature: -20 C -70 C
• Compensation Temperature: -10 C -60 C
