| Miniature Accelerometers |
.jpg) |
Description
WS series Miniature accelerometers are designed to apply for drop testing & package testing, small component qualification testing,modal testing etc. Small size,light weight.

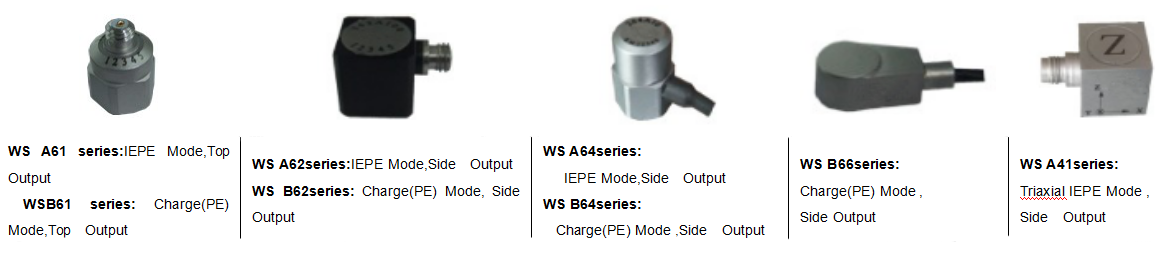

1.Miniature Single Axis IEPE/Charge(PE) Mode Accelerometers
|
Model : WS
|
Sensitivity
|
Frequency Range (±10%)
|
Measuring Range
|
Resolution
|
Operating Temperature
|
Weight
|
Output Type
|
Mounting Type
|
Size
|
|
A61-100
|
100mV/g
|
1Hz to 10kHz
|
±50g
|
1mgrms
|
-40 to +121℃
|
7.5Gram
|
M5
|
Adhesive
|
Φ11 X15mm
|
|
B61-05
|
5pC/g
|
1Hz to 10kHz
|
±2500g
|
N/A
|
-54 to +150℃
|
7Gram
|
M5
|
|
A62-100
|
100mV/g
|
1Hz to 10kHz
|
±50g
|
1mgrms
|
-40 to +121℃
|
7.5Gram
|
M5
|
Adhesive
Isolated
|
12X 12 X 12mm
|
|
B62-05
|
5pC/g
|
1Hz to 10kHz
|
±2500g
|
N/A
|
-54 to +150℃
|
7Gram
|
M5
|
|
A64-10
|
10mV/g
|
1Hz to 12kHz
|
±500g
|
10m grms
|
-40 to +121℃
|
4Gram
|
Integral Cable
/5-44
|
M3/5-40
|
Φ8 X12.5mm
|
|
B64-03
|
3pC/g
|
1Hz to 12kHz
|
±10000g
|
N/A
|
-54 to +150℃
|
5.0Gram
|
M3/5-40
|
|
B66-01
|
1pC/g
|
1Hz to 15kHz
|
±20000g
|
N/A
|
-54 to +150℃
|
1.8Gram
|
Adhesive
|
Φ5×10mm
|
2.Miniature Triaxial IEPE Mode Accelerometers
|
Model : WS
|
Sensitivity
|
Frequency Range (±10%)
|
Measuring Range
|
Resolution
|
Operating Temperature
|
Weight
|
Output Type
|
Mounting Type
|
Size
|
|
A41-10
|
10mV/g
|
1Hz to 6kHz
|
±500g
|
10mgrms
|
-40 to +121℃
|
12 Gram
|
1/4-28 4-pin
|
M2.5/Adhesive
|
12mm3
|
|
A41-20
|
20mV/g
|
1Hz to 6kHz
|
±250g
|
6mgrms
|
-40 to +121℃
|
12Gram
|
1/4-28 4-pin
|
M2.5/Adhesive
|
12mm3
|
|
A41-50
|
50mV/g
|
1Hz to 6kHz
|
±100g
|
2mgrms
|
-40 to +121℃
|
17.5Gram
|
1/4-28 4-pin
|
M2.5/Adhesive
|
14mm3
|
|
A41-100
|
100mV/g
|
1Hz to 6kHz
|
±50g
|
1mgrms
|
-40 to +121℃
|
17.5Gram
|
1/4-28 4-pin
|
M2.5/Adhesive
|
14mm3
|
|
| |
|
|
|
 |
|
