1.Industrial Accelerometers(Condition Monitoring)

Description

WS Series industrial accelerometers are rugged, stainless steel vibration monitoring sensors for predictive maintenance applications. All WS sensors are hermetically sealed , case isolated,laser welding sealing, waterproof, prevent oil design; Suitable for the industrial field environment under long-term stable and reliable work;

Feature

• WS151A series industrial condition monitoring accelerometers have passed Intrinsic safety certified；
• WS 151A series can provide 4 to 20 mA output; Low noise, strong anti-jamming capability;
• WS152A/252Aseries  Low cost ,suitable for permanent installation and long-term on-line monitoring;
• WS153A series :low excitation voltage (low to 5 VDC) IEPE accelerometer, suitable for hand-held vibration Meter with battery power supply;

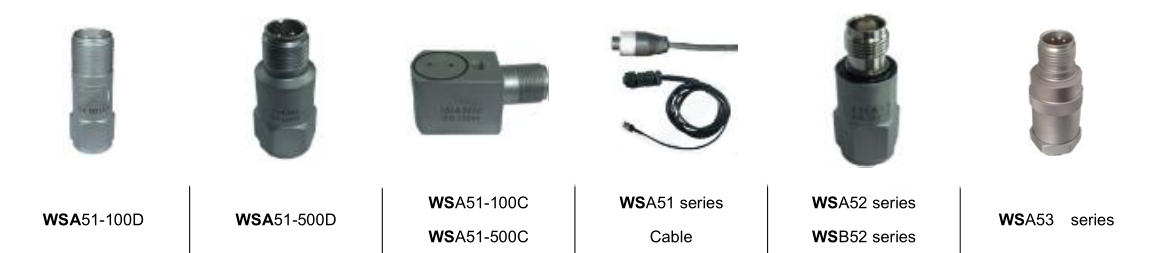

Model selection



Model WS	Sensitivity	Frequency Range (±10%)	Measuring Range	Resolution	Operating Temperature	Weight	Output Type	Mounting Type	Size
A51-100D	100mV/g	0.5Hz to 6kHz	±50g	0.5mgrms	-40 to +121℃	80Gram	MIL-C-5015 2-pin	M6 1/4-28	Φ22X45mm
A51-100C	100mV/g	0.5Hz to 6kHz	±50g	0. 5mgrms	-40 to +121℃	130Gram			23X35X25mm
A51-500D	500mV/g	0.2Hz to 2kHz	±10g	0.15mgrms	-40 to +121℃	90Gram			Φ22X51mm
A51-500C	500mV/g	0.2Hz to 2kHz	±10g	0.15mgrms	-40 to +121℃	130Gram			23X35X25mm
B52-25	25pC/g	0.5Hz to 5kHz	±2,000g	N/A	-54 to +150℃	37Gram	TNC	M5	Φ18X40mm
B52-100	25pC/g	0.5Hz to 5kHz	±2,000g	N/A	-54 to +150℃	51Gram	TNC		Φ18X40mm
A52-100	100mV/g	0.5Hz to 8kHz	±50g	0.5mgrms	-40 to +121℃	32Gram	TNC		Φ18X40mm
A53-100	100mV/g	0.5H  to 8kHz	±15g	0. 5mgrms	-40 to +121℃	32Gram	2-pin		Φ18X40mm



2.Accelerometers with Temperature output

Description

WS series Temperature/acceleration sensors integrated temperature sensor and Single Axis/Triaxial accelerometers. Whole sealing, moistureproof, dustproof, high reliability.

Model selection

Model : WS	Sensitivity	Frequency Range (±10%)	Measuring Range	Resolution	Weight	Output Type	Mounting Type	Size
A54-G100C	100mV/g	1Hz to 5kHz	±50g	0.5mgrms	55Gram	Integral cable	M12	Φ21×34mm
	10mV/℃	-	-20 to +120℃	±0.5℃
A54-G100D	100mV/g	1Hz to 5kHz	±50g	0.5mgrms	38Gram		M12	Φ21×50mm
	10mV/℃	-	-20 to +120℃	±0.5℃
A56-G100	100mV/g	0.5Hz to 3kHz	±50g	0.5mgrms	210Gram		M6/2-M5 /Φ6Hole	41×41×20mm
	10mV/℃	-	-20 to +120℃	±0.5℃
