Description
WS series General Purpose Accelerometers are applied for Vibration Testing,Product Testing,Structural Testing,Vibration Control, Package Drop Testing etc.

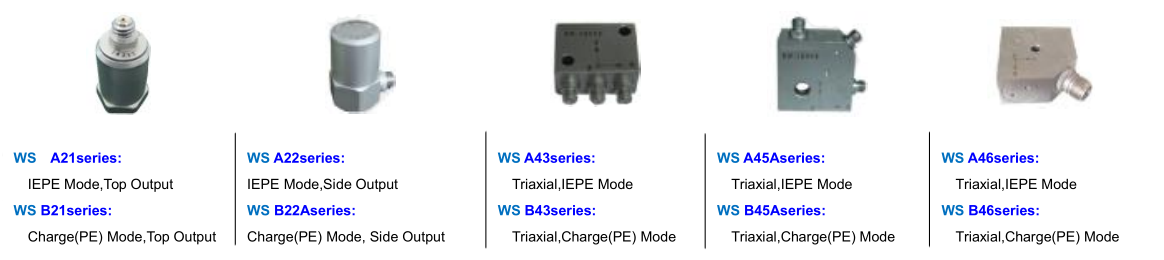

Model selection
1.General Purpose Single Axis Charge(PE) Mode Accelerometers
|
Model :
WS
|
Sensitivity
|
Frequency Range (±10%)
|
Measuring Range
|
Operating Temperature
|
Output Type
|
Mounting Type
|
Size
|
Weight
|
|
B21-10
|
10pC/g
|
1Hz to 12kHz
|
±5000g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ13x25mm
|
12Gram
|
|
B22-10
|
10pC/g
|
1Hz to 12kHz
|
±5000g
|
-54 to +150℃
|
M5
|
Side M5
|
Φ13x20 mm
|
12Gram
|
|
B21-25
|
25pC/g
|
1Hz to 10kHz
|
±2000g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ13x25mm
|
15Gram
|
|
B22-25
|
25pC/g
|
1Hz to 10kHz
|
±2000g
|
-54 to +150℃
|
M5
|
Side M5
|
Φ13x20 mm
|
15Gram
|
|
B21-50
|
50pC/g
|
0.5Hz to 6kHz
|
±1000g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ16x28 mm
|
32Gram
|
|
B22-50
|
50pC/g
|
0.5Hz to 6kHz
|
±1000g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ16x23 mm
|
32Gram
|
|
B21-100
|
100pC/g
|
0.5Hz to 6kHz
|
±1000g
|
-54 to +150℃
|
M5
|
Side M5
|
Φ16x28 mm
|
38Gram
|
|
B22-100
|
100pC/g
|
0.5Hz to 6kHz
|
±1000g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ16x23mm
|
38Gram
|
|
B21-200
|
200pC/g
|
0.5Hz to 5kHz
|
±600g
|
-54 to +150℃
|
M5
|
Side M5
|
Φ18x31 mm
|
45Gram
|
|
B22-200
|
200pC/g
|
0.5Hz to 5kHz
|
±600g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ18x26 mm
|
45Gram
|
|
B21-500
|
500pC/g
|
0.2Hz to 3kHz
|
±150g
|
-54 to +150℃
|
M5
|
Side M5
|
Φ18x31 mm
|
50Gram
|
|
B22-500
|
500pC/g
|
0.2Hz to 3kHz
|
±150g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ26x26 mm
|
50Gram
|
|
B22-1000
|
1000pC/g
|
0.2Hz to 2kHz
|
±80g
|
-54 to +150℃
|
M5
|
Side M5
|
Φ18x26 mm
|
60Gram
|
|
B106C
|
25pC/g
|
1Hz to 10kHz
|
±2000g
|
-54 to +150℃
|
M5
|
Top M5
|
Φ13x20 mm
|
15Gram
|
2.General Purpose Single Axis IEPE Mode Accelerometers
|
Model : WS
|
Sensitivity
|
Frequency Range (±10%)
|
Measuring Range
|
Resolution
|
Operating Temperature
|
Weight
|
Output Type
|
Mounting Type
|
Size
|
|
|
A21-01
|
1mV/g
|
1Hz to 12kHz
|
±5000g
|
10mgrms
|
-40 to +121℃
|
9Gram
|
Top M5
|
M5
|
Φ12×20mm
|
|
|
A22-01
|
1mV/g
|
1Hz to 12kHz
|
±5000g
|
10mgrms
|
-40 to +121℃
|
10Gram
|
Side M5
|
M5
|
Φ12×16mm
|
|
|
A21-05
|
5mV/g
|
1Hz to 12kHz
|
±1000g
|
5mgrms
|
-40 to +121℃
|
9Gram
|
Top M5
|
M5
|
Φ12×20mm
|
|
|
A22-05
|
5mV/g
|
1Hz to 12kHz
|
±1000g
|
5mgrms
|
-40 to +121℃
|
10Gram
|
Side M5
|
M5
|
Φ12×16mm
|
|
|
A21-10
|
10mV/g
|
1Hz to 10kHz
|
±500g
|
2.5mgrms
|
-40 to +121℃
|
9.5Gram
|
Top M5
|
M5
|
Φ12×20mm
|
|
|
A22-10
|
10mV/g
|
1Hz to 10kHz
|
±500g
|
2.5mgrms
|
-40 to +121℃
|
12Gram
|
Side M5
|
M5
|
Φ12×16mm
|
|
|
A21-20
|
20mV/g
|
1Hz to 10kHz
|
±250g
|
1.5mgrms
|
-40 to +121℃
|
9.5Gram
|
Top M5
|
M5
|
Φ12×20mm
|
|
|
A22-20
|
20mV/g
|
1Hz to 10kHz
|
±250g
|
1.5mgrms
|
-40 to +121℃
|
12Gram
|
Side M5
|
M5
|
Φ12×16mm
|
|
|
A21-50
|
50mV/g
|
0.5Hz to 8kHz
|
±100g
|
1mgrms
|
-40 to +121℃
|
20Gram
|
Top M5
|
M5
|
Φ13×20mm
|
|
|
A22-50
|
50mV/g
|
0.5Hz to 8kHz
|
±100g
|
1mgrms
|
-40 to +121℃
|
20Gram
|
Side M5
|
M5
|
Φ13×16mm
|
|
|
A21-100
|
100mV/g
|
0.5Hz to 8kHz
|
±50g
|
0.5mgrms
|
-40 to +121℃
|
18Gram
|
Top M5
|
M5
|
Φ13×22mm
|
|
|
A22-100
|
100mV/g
|
0.5Hz to 8kHz
|
±50g
|
0.5mgrms
|
-40 to +121℃
|
20Gram
|
Side M5
|
M5
|
Φ13×22mm
|
|
|
A21-200
|
200mV/g
|
0.3Hz to 5kHz
|
±25g
|
0.2mgrms
|
-40 to +121℃
|
28Gram
|
Top M5
|
M5
|
Φ18×31mm
|
|
|
A22-200
|
200mV/g
|
0.3Hz to 5kHz
|
±25g
|
0.2mgrms
|
-40 to +121℃
|
30Gram
|
Side M5
|
M5
|
Φ18×26mm
|
|
|
A21-500
|
500mV/g
|
0.2Hz to 3kHz
|
±10g
|
0.1mgrms
|
-40 to +121℃
|
40Gram
|
Top M5
|
M5
|
Φ18×31mm
|
|
|
A22-500
|
500mV/g
|
0.2Hz to 3kHz
|
±10g
|
0.1mgrms
|
-40 to +121℃
|
57Gram
|
Side M5
|
M5
|
Φ18×26mm
|
|
|
A22-1000
|
1000mV/g
|
0.2Hz to 1kHz
|
±5g
|
0.05mgrms
|
-40 to +121℃
|
57Gram
|
Side M5
|
M5
|
Φ26x30 mm
|
|
3.General Purpose Triaxial IEPE /PE Mode Accelerometers
|
Model : WS
|
Sensitivity
|
Frequency Range (±10%)
|
Measuring Range
|
Resolution
|
Operating Temperature
|
Weight
|
Output Type
|
Mounting Type
|
Size
|
|
A43-10
|
10mV/g
|
1Hz to 6kHz
|
±500g
|
0.005grms
|
-40 to +121℃
|
34 Gram
|
3-M5
|
2-Φ3
hole
|
25.4X22
X13mm
|
|
A43-20
|
20mV/g
|
1Hz to 6kHz
|
±250g
|
0.003grms
|
-40 to +121℃
|
50Gram
|
|
A43-50
|
50mV/g
|
1Hz to 5kHz
|
±100g
|
0.001grms
|
-40 to +121℃
|
34Gram
|
|
B43-10
|
10pC/g
|
1Hz to 6kHz
|
±200g
|
N/A
|
-54 to +150℃
|
34Gram
|
|
A45-10
|
10mV/g
|
1Hz to 6kHz
|
±500g
|
0.005grms
|
-40 to +121℃
|
54Gram
|
3-M5
|
Φ5 hole /M6(Z);
2-M5(X,Y)
|
25.4X25.4
X14mm
|
|
A45-20
|
20mV/g
|
1Hz to 6kHz
|
±250g
|
0.003grms
|
-40 to +121℃
|
43Gram
|
|
B45-50
|
50mV/g
|
1Hz to 5kHz
|
±100g
|
0.001grms
|
-40 to +121℃
|
45Gram
|
|
A45-100
|
100mV/g
|
1Hz to 5kHz
|
±50g
|
0.0005grms
|
-40 to +121℃
|
45Gram
|
|
B45-10
|
10pC/g
|
1Hz to 5kHz
|
±2000g
|
N/A
|
-54 to +150℃
|
42Gram
|
|
B45-20
|
20pC/g
|
1Hz to 5kHz
|
±1000g
|
N/A
|
-54 to +150℃
|
70Gram
|
|
A46-01
|
1000mV/g
|
0.2Hz to 500Hz
|
±5g
|
0.0001grms
|
-40 to +121℃
|
820 Gram
|
4-pin Socket
|
Φ5 hole /
M6
|
75X75
X38mm
|
|
A46-02
|
2000mV/g
|
0.2Hz to 500Hz
|
±2.5g
|
0.0001grms
|
-40 to +121℃
|
820 Gram
|
|
B46-01
|
1000pC/g
|
0.2Hz to 500Hz
|
±100g
|
N/A
|
-54 to +150℃
|
820 Gram
|
|
