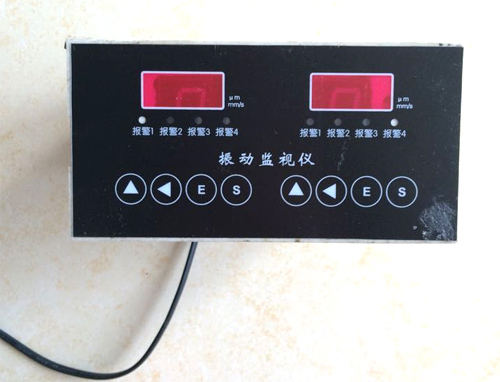

Main functions
The product can be used in monitoring and protecting turbine, water turbine, compressor, blower, and other rotational machineries.

Function description:

1. Display function
2. Alarm function
3. Alarm-delay time setting function
4. Self-diagnostic function
5. Output interface
Technical parameters:

1. Input signal: SDW-5 type eddy current sensor system, frequency response :0～5KHz
2. Display mode: three-bit semi-LED display, accuracy:±0.5％
3. Measurement range: 0～500um
4. Current output: 4～20mA load≦500Ω
5. Power output: -24VDC
6. Alarm contact capacity: AC220V/3A, DC28V/3A
7. Work environment: temperature: 0～55℃ Relative humidity: ≤95%
8. Power supply: AC 220VAC±10% 50Hz Power consumption≤10W
9. Installation: disk type
10. Machine size: 160 (width)×80 (height)×250 (depth)mm
11. Hole size: 152 (width)×75 (height)mm

Order guide:

1. MZD-SH type axial vibrating monitor must be configured with YH-DO type eddy current displacement sensor.
2. Model code:
MZD-SH—A□□—B□□—C□□—D□□—E□□
8200/021/022—A□□—B□□—C□□—D□□—E□□

Range selection A□□:
0 1—— 0～100um
0 2—— 0～200um
0 3—— 0～500um
Current output B□□:
0 1——4～20mA
0 2——0～10mA
Sensor selection C□□ (SDW-5 type eddy current sensor):
0 1—— Ф8mmSensor
0 2—— Ф11mmSensor
Alarm delay D□□:
0 1—— 0.1 sec.
0 2—— 1 sec.
0 3—— 3 sec.
