Integrated eddy current sensor is mainly used in monitoring displacement, vibration and speed of rotational machineries.

Uses:

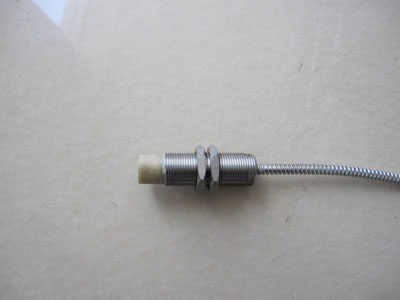

SDW-5U type integrated eddy current sensor is mainly used in monitoring displacement, vibration and speed of rotational machineries.
Technical index:

■ Power supply: ±24Vdc
■Operating frequency range: 0～6kHz
■Displacement measurement range: 2mm or 4mm
■Output 4～20mA
■Error range: ≤1.0%
■Working temperature: -20℃～80℃
■Sensitivity: 8V/mm, 8mA/mm, 4V/mm, 4mA/mm
■Ripple: ≤20mV
■Resolution: 0.1μm
■Temperature drift: 0.5‰
