Technical index:

1. Frequency range: 0-20kHz
2. Gear parameters: modulus≥1.5, material is magnetic conductor material
3. Mounting clearance: 0.5-2.0mm, typical value is 1.0mm
4. Number of output channel: dual channel
5. Output waveform: square wave
6. Output amplitude: high level: Ub- (1.6V±30%), low level: 〈 2V±30%
7. Pulse duty factor: 50％±25％
8. Phase difference: 90±30°

9. Applicable temperature range: -20~+120°C

10. Temperature resistance of output cable: -40~200°C

11. Supply voltage: (5~24)V DC, 15Vdc±30% is suggested

Gear material
Gear material adopts with metal material with strong hydraulic servo-motor

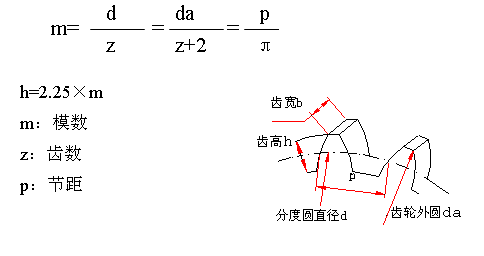

Tooth form
Involute tooth profile is the most approximate tooth form.

Order
Order code: SFZS-5-A□□-B□□
Sensor length: A□□
0 1: 65mm
0 2: 117mm
0 3: 148mm

Screw thread: B□□

0 1: M10×1
0 2: M12×1
0 3: M16×1
0 4: M18×1
