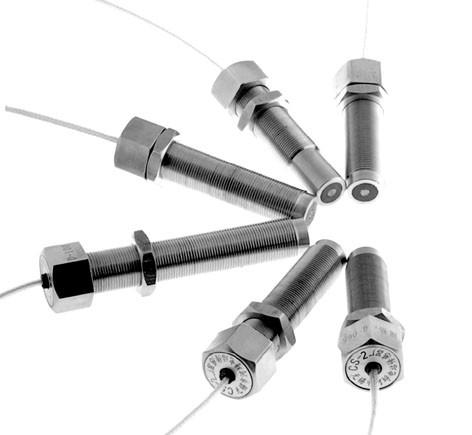

| Hall speed sensor |
.jpg) |
SHZS-5 type hall speed sensor adopts Hall sensitive element. It has features such as wide frequency response, good stability, strong antijamming capacity, etc.
|
Model
|
SHZS-5-01-10L |
SHZS-5-02-10L |
SHZS-5-01-12L |
SHZS-5-02-12L |
SHZS-5-01-16L |
SHZS-5-02-16L |
SHZS-5-01-18L |
SHZS-5-02-18L |
|
Output way
|
1 way |
2 ways |
1 way |
2 ways |
1 way |
2 ways |
1 way |
2 ways |
|
Thread specification
|
M10×1 |
M12×1 |
M16×1 |
M18×1 |
|
Length of screw
|
50mm |
60mm |
60mm |
70mm |
|
Working voltage
|
DC 5V~24V |
|
Output waveform
|
square wave |
|
Response frequency
|
0.3Hz~1KHz or 1Hz~20KHz ; |
|
Measurement accuracy
|
±1 pulse; |
|
Output voltage
|
One way: high level approximate supply voltage; low level <0.3V
Two way: two way 90° Phase difference的square wave; high level: approximate supply voltage; low level: ≤ 0.7V ; |
|
Detect distance
|
0.5~4mm |
|
Triggered form
|
steel gear, rack or other magnetic materials |
|
Operating temperature
|
-25 ℃ ~+80 ℃ ; |
|
Operating humidity
|
≤ 95%RH |
|
Protection form
|
polarity, short circuit |
|
Level of protection
|
IP65 |
IP65 |
IP65 |
IP65 |
|
Output mode
|
PNP output |
PNP output |
PNP output |
PNP output |
|
Order
Order code: SHZS-5-A□□-B□□
Sensor length: A□□
0 1: 65mm
0 2: 117mm
0 3: 148mm
Screw thread: B□□
0 1: M10×1
0 2: M12×1
0 3: M16×1
0 4: M18×1
|
