The transmitter is used with eddy current to measure axial displacement, differential expansion and coating thickness of rotating machinery.

Technical parameters:
● Input signal: eddy current sensor output
● Output signal: 4～20mA or 0-24V (can be designed at customer's request)
● Measuring range: 0～10mm
● Precision: ±1%
● Working voltage: DC24V, -24V power supply (can be designed at customer's request)
● Working temperature: -30～+50℃

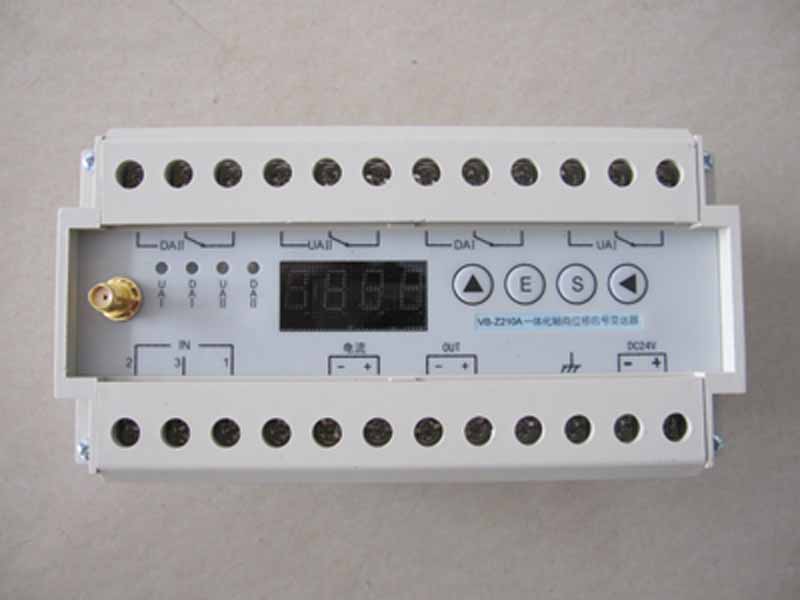

● Proximitor structure:

Model selection:

TZC-2—A□—B□—C□
Model selection:
Sensor selection A□: 1-Ф8mm; 2-Ф11mm; 3-Ф16mm; 4-Ф18mm; 5-Ф25mm; 6-Ф32mm; 7-Ф40mm;
Measuring range B□: 1- -1.0～1.0mm; 2- -1.5～1.5mm; 3- -2.0～2.0mm; 4- -3.0～5.0mm; 5- -5.0～5.0mm
Shell selection: C□: A-standard tract installing electric box, B-mounting screw shell

Proximitor can be designed and produced at customer's request
