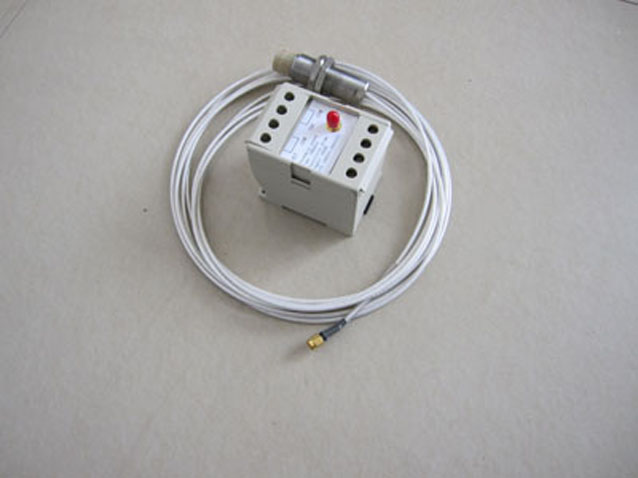

TZD-SH type shaft vibration transmitter can be divided into two types:

 Integrated type: to connect eddy current sensor, probe and extension cable.
 Split type: to connect φ8mm eddy current sensor system (including proximitor, extension cable, probe)

Technical parameters
■ Measurement range: all range within 0~500μm;
■ Frequency response: 1~200Hz;
■ Current output: 4~20 mA or 0~10mA, precision: ±1% of full range, maximum load 500Ω;
■ Output buffer: original signal output of sensor; (optional)
■ Alarm: arbitrary point within full range, LED alarm indication, relay
Switching value contact output, volume DC28V/2A or AC250V/1A; (optional)
■ Operating state: NOK yellow light, failure of probe or extension cord; red light: alarm indication.
■ Power supply: +24VDC±10% or 220VAC±10%, 50Hz, power consumption<6W.
