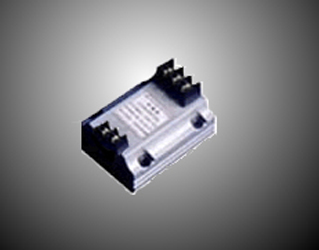

TZD type vibration transmitter can be configured with SZP-5 magnetoelectric type sensor.

Technical parameters
■ Measurement range:all range within 0~1000μm;
■ Frequency response: 10~500Hz;
■ Current output: 4~20mA or 0~10mA, precision: ±1% of full range,
maximum load 500Ω;
■ Output buffer: original signal output of sensor; (optional)
■ Alarm: arbitrary point within full range, LED alarm indication, relay
Switching value contact output, volume DC28V/2A or AC250V/1A; (optional)
■ Power supply: +24VDC±10% or 220VAC±10%, 50Hz, power consumption<6W.
