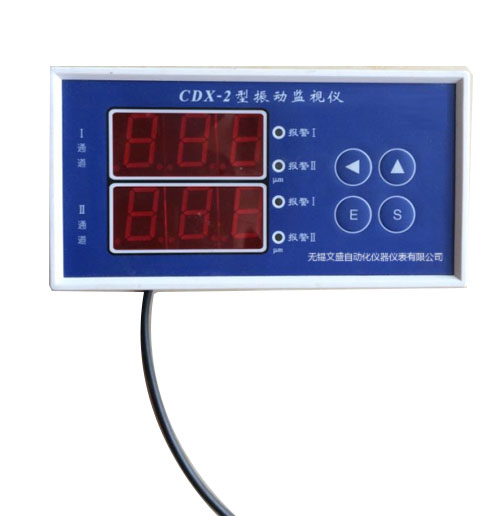

CDX-2 type dual channel bearing pad vibration monitor is configured with YZ-6 vibration velocity sensor.
Main functions
The product can be used in monitoring and protecting bearing pad vibration of turbine, water turbine, compressor, blower, and other rotational machineries.
Function description:
1. Display function
2. Alarm function
3. Alarm-delay time setting function
4. Self-diagnostic function
5. Output interface
Technical parameters:
1. Sensor input: YZ-6 vibration velocity sensor, sensitivity: 20~50mV/mm/S±1%, frequency response: 5~1000Hz
2. Display mode: 3-bit digital tube display, accuracy:±0.5%
3. Measurement range: 0~500μm (peak value)
4. Current output: 4~20mA or 0~10mA, load≦500Ω
5. Alarm contact capacity: AC220V/3A, DC28V/3A
6. Work environment: temperature: 0~55℃ Relative humidity: ≤95%
7. Power supply: AC 220VAC±10% 50Hz Power consumption≤10W
8. Installation: disk type
9. Machine size: 160 (width)×80 (height)×250 (depth)mm
10. Hole size: 152 (width)×75 (height)mm
Order guide:
1.CDX-2 type vibration monitor must be configured with YZ-6 type vibration velocity sensor.
2.Model code:
CDX-2—A□□—B□□—C□□—D□□
8200/011/012—A□□—B□□—C□□—D□□
Range selection A□□:
0 1—— 0~100um;
0 2—— 0~200um;
0 3—— 0~250um;
0 4—— 0~500um
Current output B□□:
0 1—— 4~20mA;
0 2—— 0~10mA
Sensor selection C□□ (YZ-6 vibration velocity sensor):
0 1—— YZ-6 type
Alarm delay D□□:
0 1—— 0.1 sec;
0 2—— 1 sec;
0 3—— 3 sec.
|
