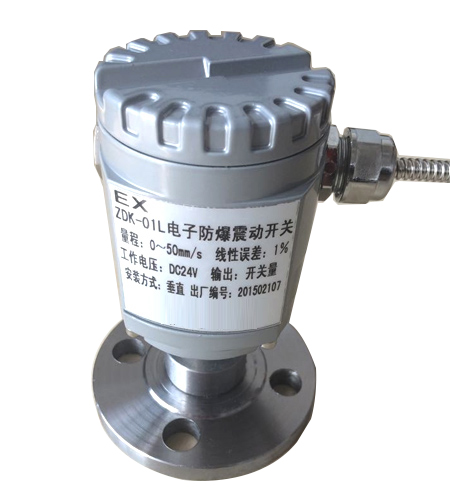

ZDK-01L type explosion-proof integrated vibration switch can be used in monitoring and protecting vibration severity.

2.Technical parameters
2.1 Sensitivity: 30mv/mm/s±5%
2.2 Frequency response: 5 ～ 1000 Hz
2.3 Natural frequency of vibration: 10Hz
2.4 Measurement range: 0～2000μm
2.5 Switching value output: AC220V/5A
2.6 Output impedance: ≤500Ω
2.7Working voltage: DC24V
2.8 Maximum acceleration: 10g
2.9 Direction of measurement: vertical or horizontal
2.10 Operating environment: temperature -30℃～70℃ Relative humidity ≤90%
2.11 Size: φ70×115mm
2.12 Mounting thread: M20×1.5
2.13 Weight: about 500g
2.14 Accuracy: ±1% (full measuring range)
3.Installation
3.1 Installation site: it is mounted on oscillation point vertically or horizontally.

Mode of connection:

1) Red line –DC24V
2 ) Yellow line –ground
3 ) Blue line-alarm switch
4 ) Green line-alarm switch

4.Notes
4.1 It is packed in special packing box during transportation and storage.
