Product overview

  WPTG-10 Differential Pressure Transmitter is assembled using an OEM piezoresistive silicon differential pressure sensor filled with oil. The shell is made of stainless steel and has strong corrosion resistance. The two pressure ports are threaded and can be mounted directly on the measuring pipe or connected through the pressure pipe.WPTG-10 series have standard voltage/current output options, which can be easily installed and used. The products are widely used in the measurement and control of differential pressure, liquid level and flow in process control, aviation, aerospace, automotive, medical equipment, HVAC, etc.

Features

■ 316L stainless steel diaphragm structure
■ Differential pressure measurement
■ Easy to install
■ Zero and full scale span adjustable externally
■ Short circuit protection and reverse polarity protection
■ Excellent shock resistance, vibration resistance and electromagnetic compatibility resistance
■ Customization available


Applications

■ Equipment support
■ Scientific experiment
■ Precision instrument
■ Water supply and drainage
■ Power plant differential pressure
■ Flow

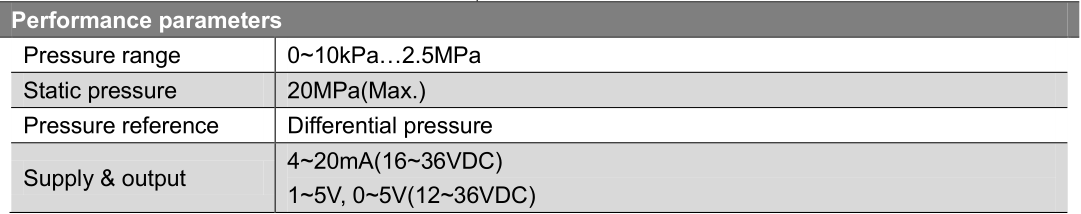

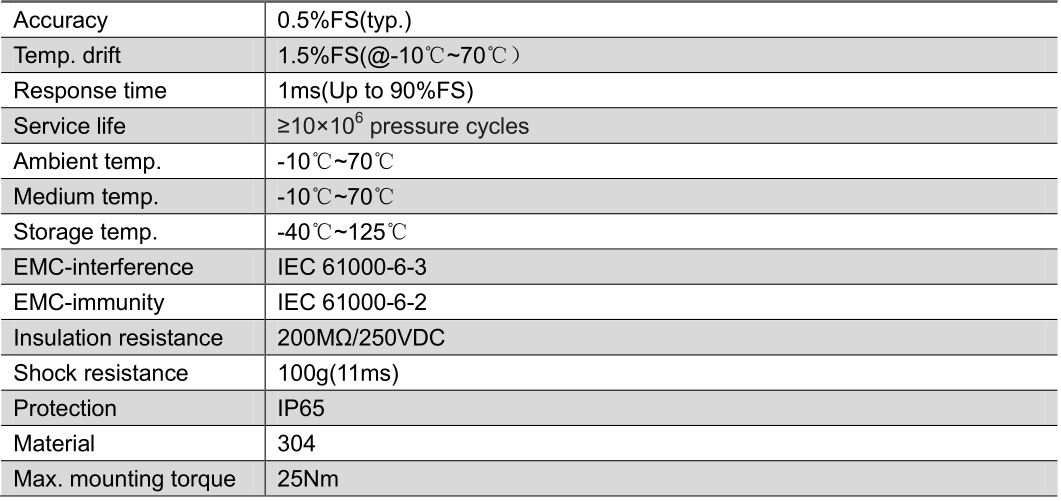

Technical Parameter

Example: WPTG-10-35kB1C3J5
Refer to product model WPTG-10, with pressure range 0~35kPa, supply 24V, output signal 4~20mA,pressure port G1/4, electrical connection DIN43650.

Ordering tips:

⑴ Ensure compatibility between measured media and contacting part of product.
⑵ For special requirements on the appearance and performance parameters, customization is available.
