Product overview

  WPT-3501C series intelligent pressure transmitter uses currently the most mature capacitance sensor manufacturing
technology. The whole series products have passed rigorous assembly and commissioning. The appearance and
performance have reached the international advanced level.The product is designed using fully isolated circuit technology
and can accurately measure gauge pressure, absolute pressure, flow, vacuum, level and density.

Features

■ Metal capacitive sensor adpoted
■ Wide range covering 0-0.2kPa~40MPa

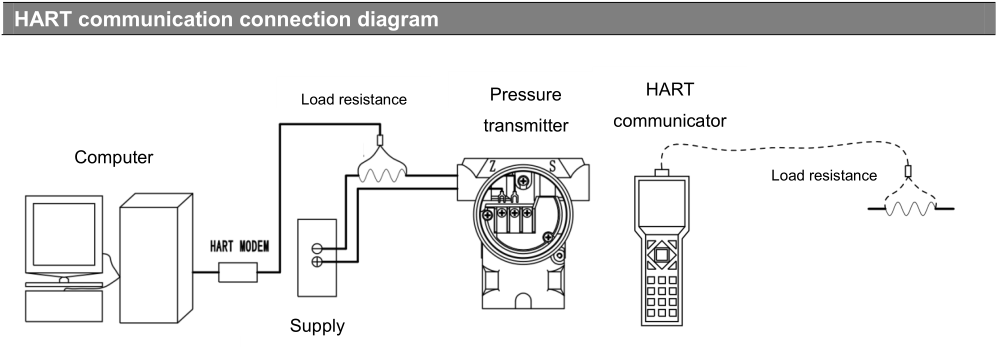

■ 2-wire system, 4 - 20mA analog output, HART protocol digital communication option
■ Intelligent LCD with backlight
■ Both remote transmission and local zero and span adjustment
■ Complete varieties, high precision, good stability, adjustable damping, strong resistance to unidirectional overpressure
■ Flameproof shell structure, strong resistance to frequency conversion interference
■ No mechanical transmission parts, strong anti-vibration
■ Lower cost than similar imported instruments

Applications

■ Process control areas in industries ofpetroleum, chemical, metallurgy, electric power, food, papermaking, medicine,
   machinery manufacturing, scientific experiments, aviation and military

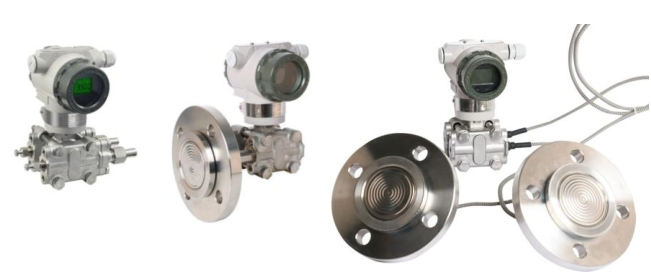

Standard products

■ PCM3051C-GP Intelligent pressure transmitter
■ PCM3051C-AP Intelligent absolute pressure transmitter
■ PCM3051C-DP Intelligent differential pressure transmitter
■ PCM3051C-HP Intelligent high static differential pressure transmitter

Non-standard products

■ PCM3051C-LT Intelligent flange mounting pressure transmitter
■ PCM3051C-RG Intelligent remote transmission pressure transmitter
■ PCM3051C-RD Intelligent remote transmission differential pressure transmitter
