Description

WPL-61 Level Transmitter accurately measures static pressure of the liquid proportional to the level depth using high performance piezoresistive silicon chip as the measuring element. The result is converted to standard current or voltage signal output through signal conditioning circuit, establishing the linear corresponding relation between the output signal and liquid depth to complete the measurement of the liquid depth. The flange can be customized and the cable is packaged in the armored stainless steel pipe. The material is reliable.The product has passed long-term aging and stability screening with stable performance and reliable sealing, and can be used in harsh outdoor environment. It is applicable to the measurement and control of the liquid level in the petroleum, chemical industry, power plant, urban water supply and hydrological exploration fields.

Features

Piezoresistive silicon chip employed
Probe insertion measurement mode, simple and convenient installation
Custom flange
All-metal armored, high strength steel pipe structure
Multiple protection structure design, high protection ability
LCD option
Corrosion resistant stainless steel adopted, applicable to various industry fields

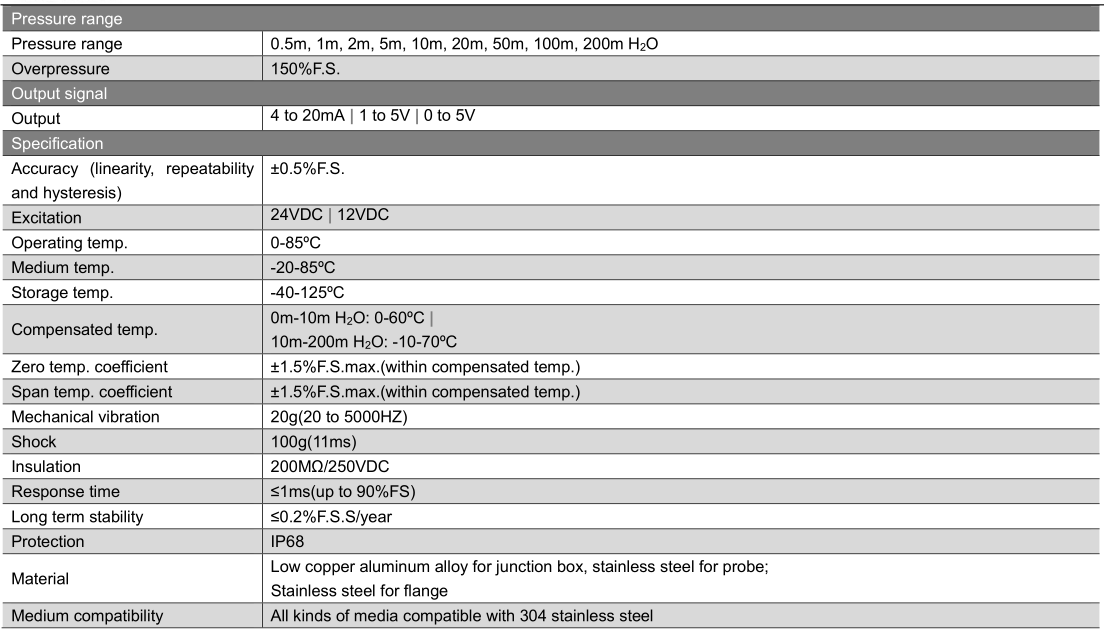

Technical Parameter
