Product overview
WPL-60 Submersible Level Transmitter accurately measures static pressure of the liquid proportional to the level depth using high performance piezoresistive diffused silicon pressure sensor as the measuring element. The result is converted to standard current or voltage signal output through signal conditioning circuit, establishing the linear corresponding relation between the output signal and liquid depth to complete the measurement of the liquid depth. The product has advantages of high precision and small volume. Submerse it directly into liquid, the height between the end of the transmitter to the liquid surface is measured easily. The product is applicable to the measurement and control of the liquid level in the petroleum, chemical industry, power plant, urban water supply and hydrological exploration fields.WPL-60 has passed long-term aging and stability screening with stable and reliable performance and can be used in harsh outdoor environment. Meanwhile, it can display liquid level on site. Zero shift and full scale span shift available.
Features
■ Piezoresistive diffused silicon pressure sensor
■ Probe insertion measurement method, easy to install
■ For level measurement
■ Multiple protective structure design, high protection ability
■ LCD option
■ Variety of styles, suitable for various industrial applications
■ Anti-corrosion stainless steel material adopted, suitable for many occasions
|
Applications
■ Static pressure level
■ Liquid tanks
■ Sewage
■ Industrial water
■ Pools
■ Wells
■ Rivers
■ Seawater
■ Lakes
|

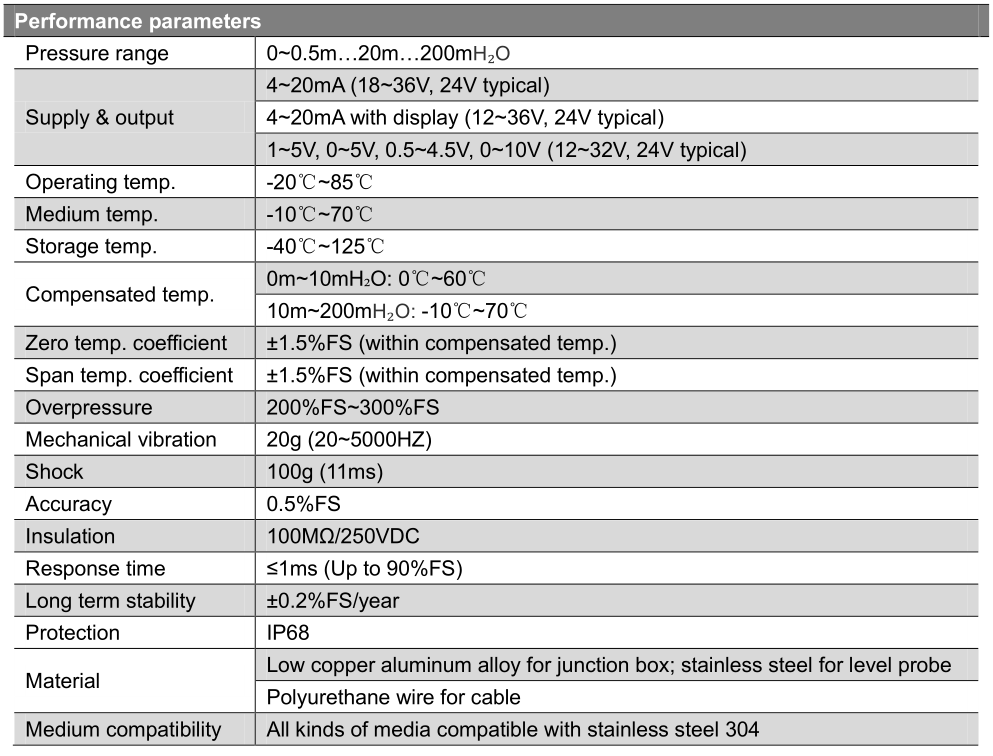

Technical Parameter

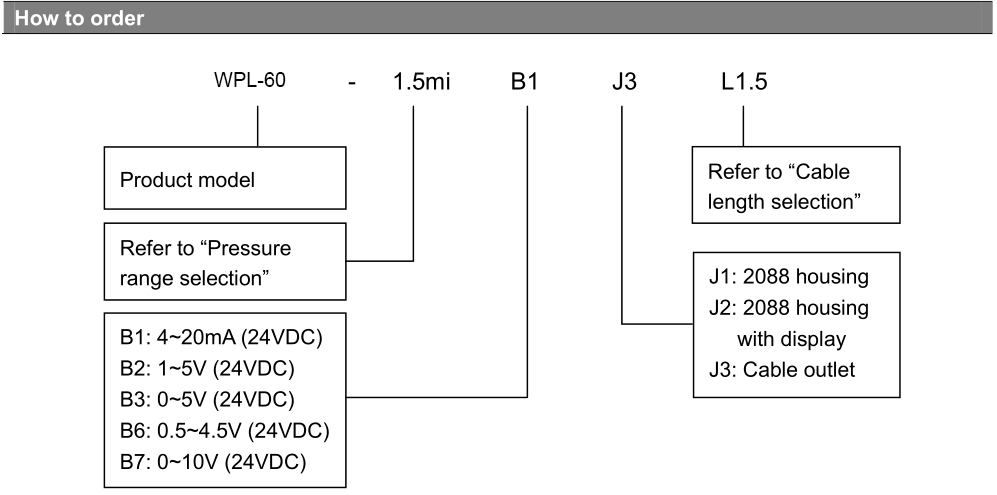

Example: WPL-60-1.5miB1J3L1.5

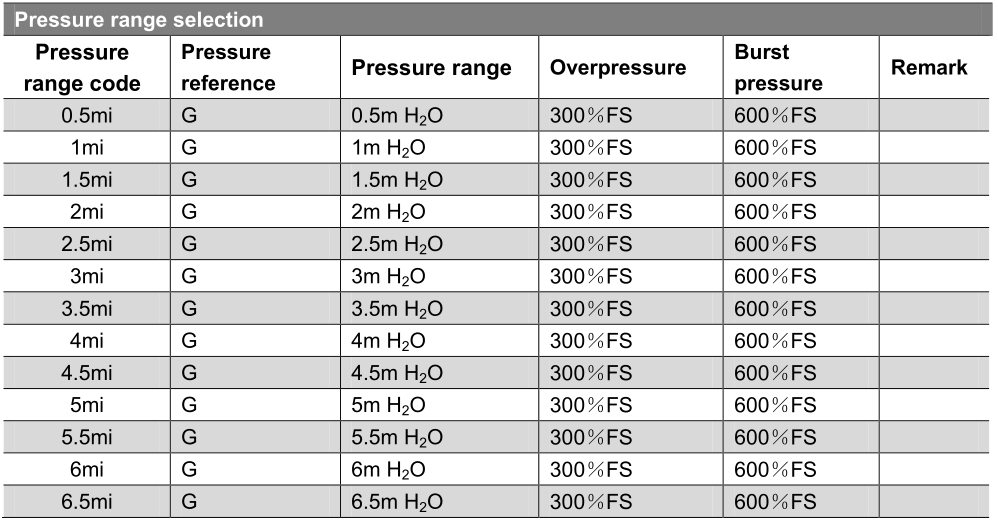

Refer to product model WPL-60, with pressure range 1.5m H2O, output signal 4~20mA (24VDC

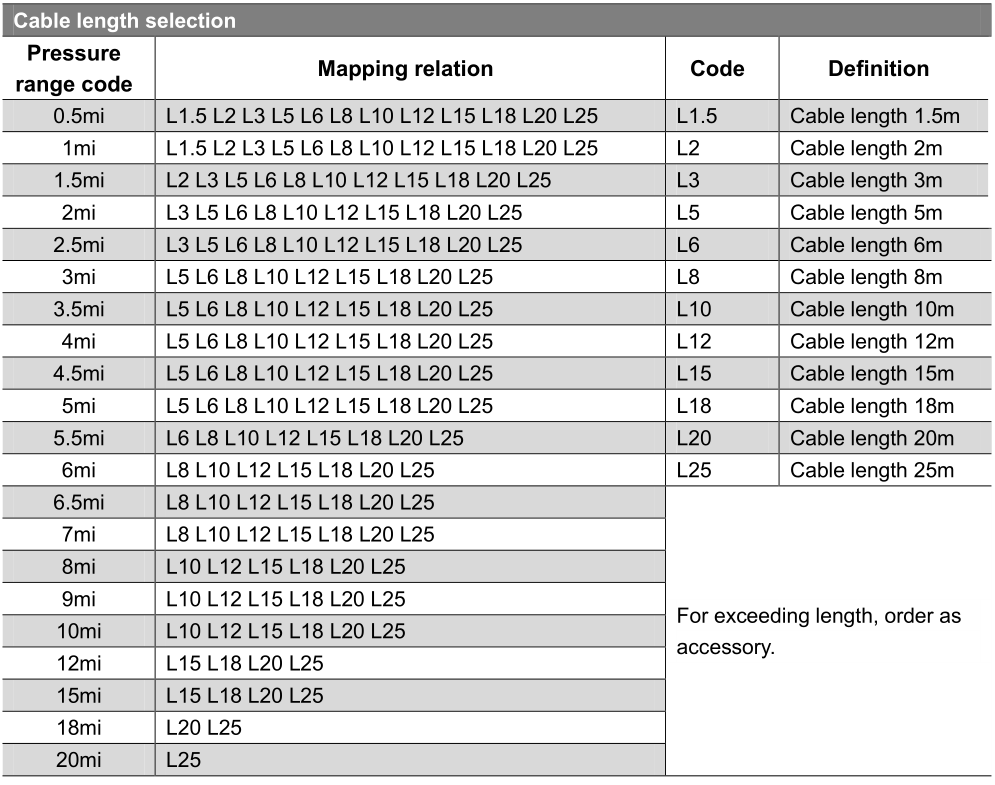

supply), electrical connection cable outlet, cable length 1.5m.
Optional accessories
1. The part of cable exceeding the standard cable length
2. WPL-60 anti-blocking protective cover (with filter)
|
