Description

WPTC-T  High Temperature Pressure Transmitter uses high temperature resistant pressure sensor as the signal measuring element. The pressure of  measured medium is transmitted to the sensor through heat dissipation structure. The high precision signal processing circuit is located inside the stainless steel shell, converting the output signal to standard output signal. The product has passed rigorous tests and aging screening. The performance is stable and reliable. The product is widely applied in industrial field, food and medical equipment, power generation, machinery manufacturing, automobile manufacturing, shipbuilding, petrochemical, metallurgy, steam and heat exchange field.

Features

High temperature resistant pressure chip employed
Designed with heat exchange plate, high temperature resistant, applicable medium temperature up to 300 ºC
Solid well sealed aluminum alloy junction box employed, convenient for outdoor installation and use
Low, medium and high pressure ranges provided
LCD option
Full welded structure for the sensor and pressure interface, shock resistant and vibration resistant
Intrinsically safe explosion-proof option

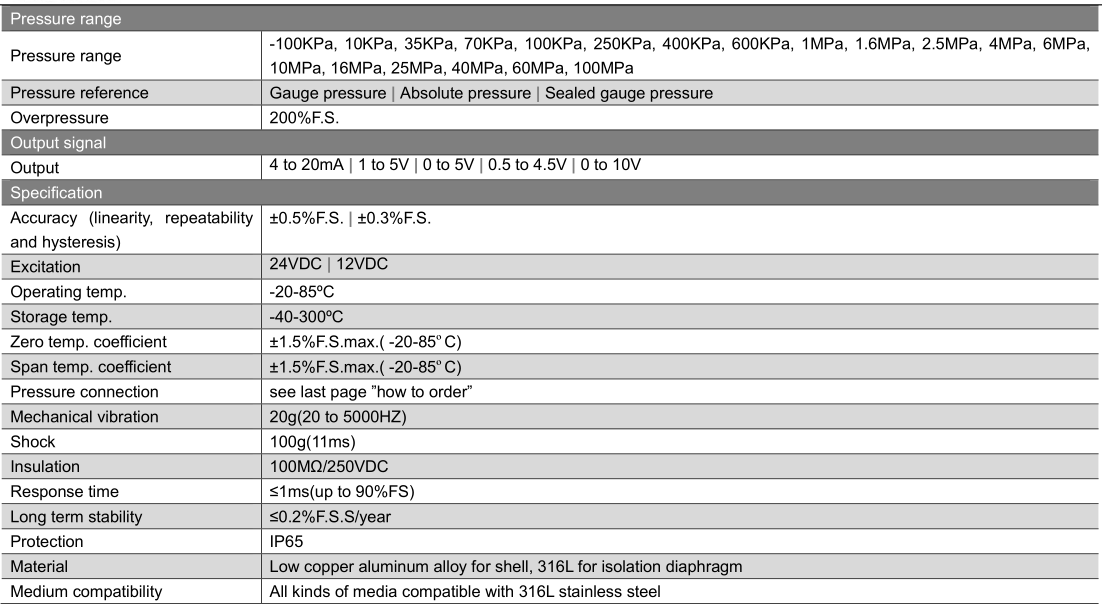

Technical Parameter
