Description

WPTC-F Sanitary Pressure Transmitter is a customized product to meet the requirements of customer for flange installation. The product uses imported diffused silicon pressure sensitive device. It is the fruit of several technologies including diffused silicon precision machining, temperature compensation and analog signal processing technology. The product has passed long-term aging and stability screening. The performance is stable and reliable. Taking the flange plate of international standard as the interface standard, the product can meet the on-site installation requirements of customer. The main body adopts advanced process and materials, which is completely isolated from outside by sealing and curing, meeting the requirements of moisture proof, waterproof, explosion-proof and harsh working conditions.

Features

Piezoresistive silicon chip employed
Flange mounting
Diaphragm of large size, full welded seal, reliable and durable for a long time
Solid well sealed aluminum alloy junction box employed, convenient for outdoor installation and use
Pressure measurement for gases, liquids and vapors
Corrosion resistant metal diaphragm option
LCD option
Especially applicable to liquid of high temperature or viscous liquid
Customized flange size available, with flexible installation

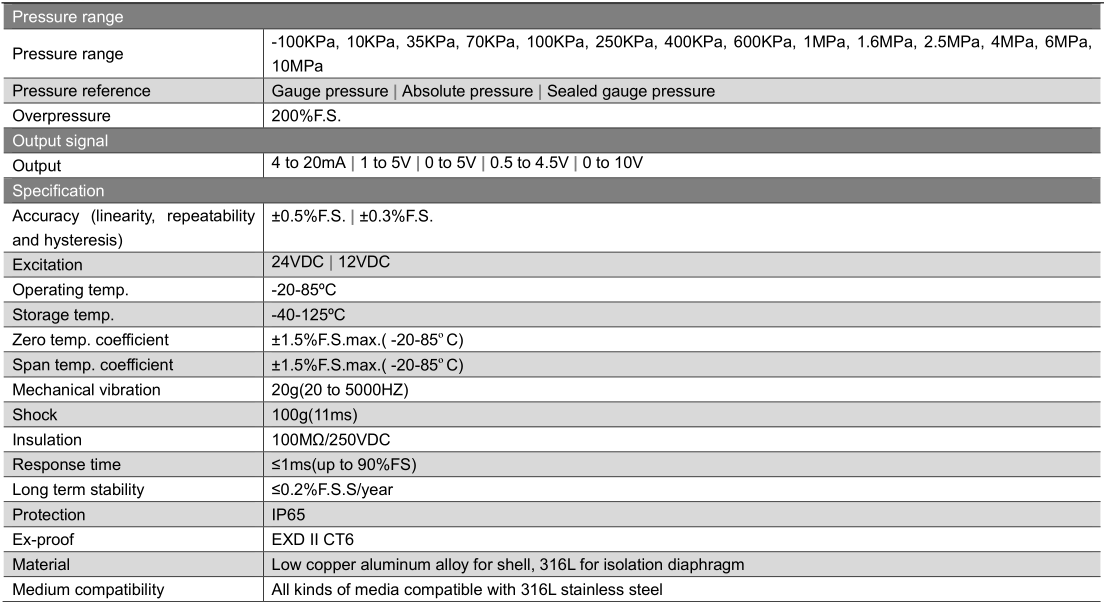

Technical Parameter
