Product overview

WPTC-1 flameproof pressure transmitter adopts high-performance piezoresistive silicon oil-filled pressure sensor as pressure sensitive core. Through internal ASIC, the millivolt signal of sensor is transmitted into standard long-distance transmission current signal.
WPTC-1 can be directly connected with computer interface card, control instruments, intelligent meters or PLC conveniently. The series of products are widely used in industrial process control, petroleum, chemical, metallurgical and other industries.The product complies with the regulations of GB3836.1-2010 "Explosive Environment Part 1: General Requirements for
Equipments" and GB3836.2-2010 "Explosive Environment Part 2: Equipments Protected by Flameproof Enclosure ‘d’". Explosion-proof mark Exd ⅡB T6 applies to factories with flammable gas of ⅡA, ⅡB grade, T1-T6 group or environment with explosive mixture of steam and air. Flameproof pressure transmitters operate normally at the following altitude, ambient air temperature and ambient relative humidity: altitude not exceeding 2000m; ambient air temperature -10℃~+60℃; relative humidity of 90% (+25℃).

Features

■ Diffused piezoresistive silicon pressure sensor
■ Strong and well-sealed aluminum alloy junction box, convenient for outdoor installation and use
■ For gas, liquid and steam pressure measurement
■ Provide low, medium and high pressure ranges

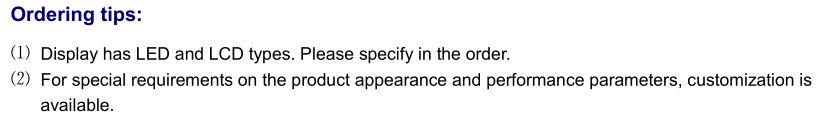

■ LCD option
■ Isolation and explosion-proof


Applications

■ Industrial site control
■ Coal mine
■ Oilfield
■ Heavy Industry
■ Chemicals
■ Gas network
■ Water supply network

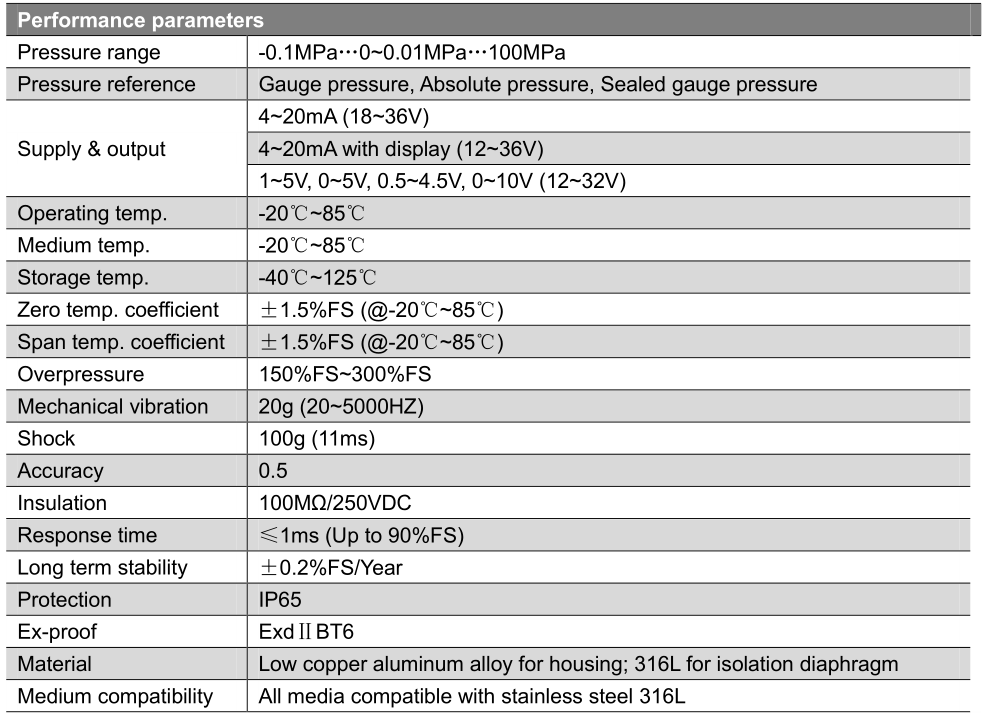

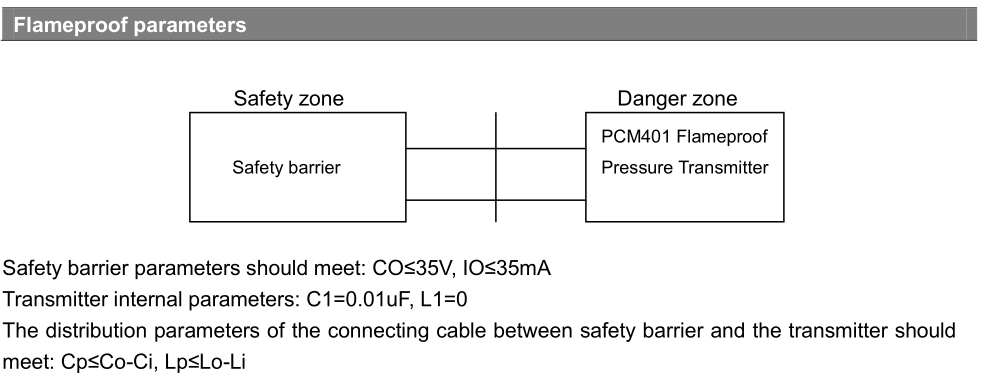

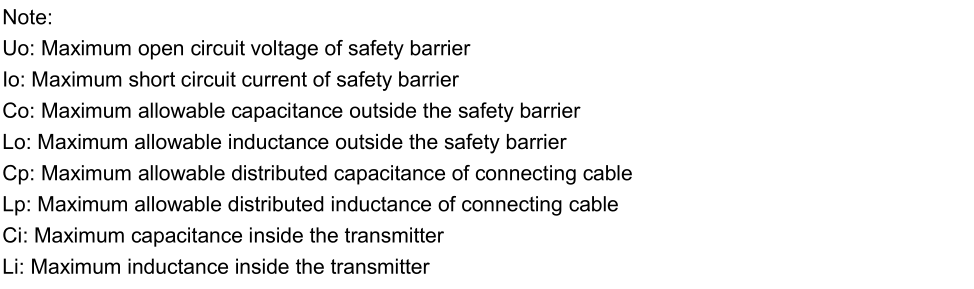

Technical Parameter

Example: WPTC-1-100kGB1C2J13

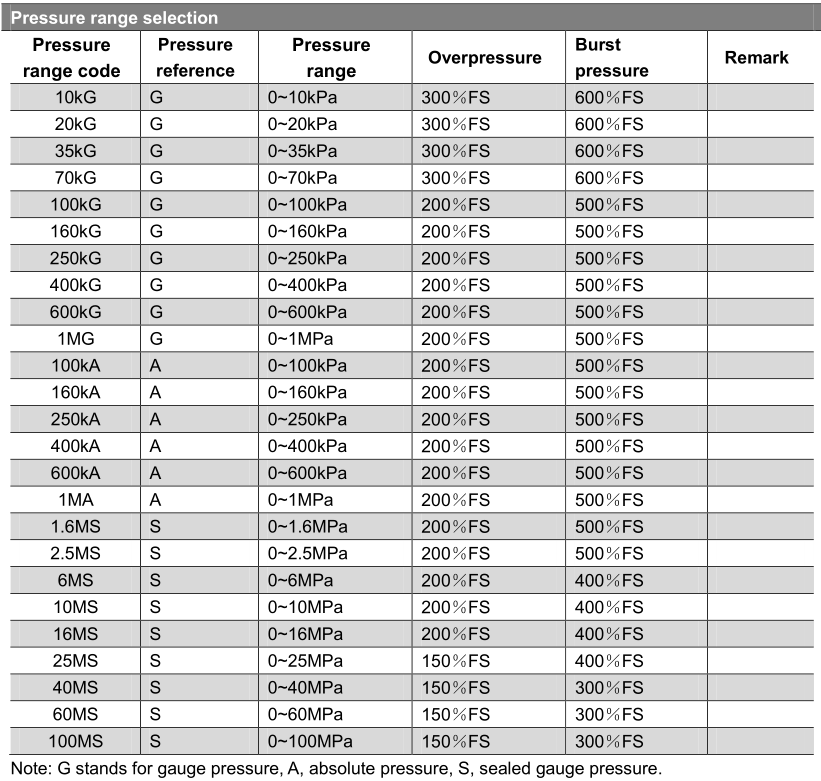

Refer to product model PCM401, with pressure range 0~100kPa，pressure reference gauge pressure，

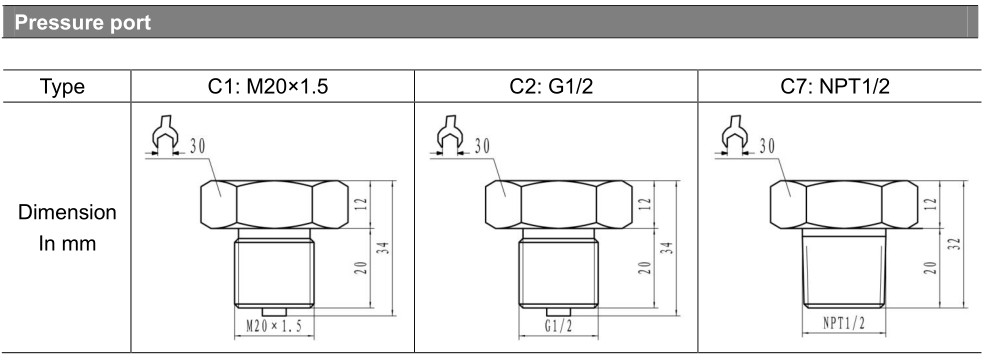

output signal 4~20mA with display, pressure port G1/2, electrical connection M20×1.5 Female, and

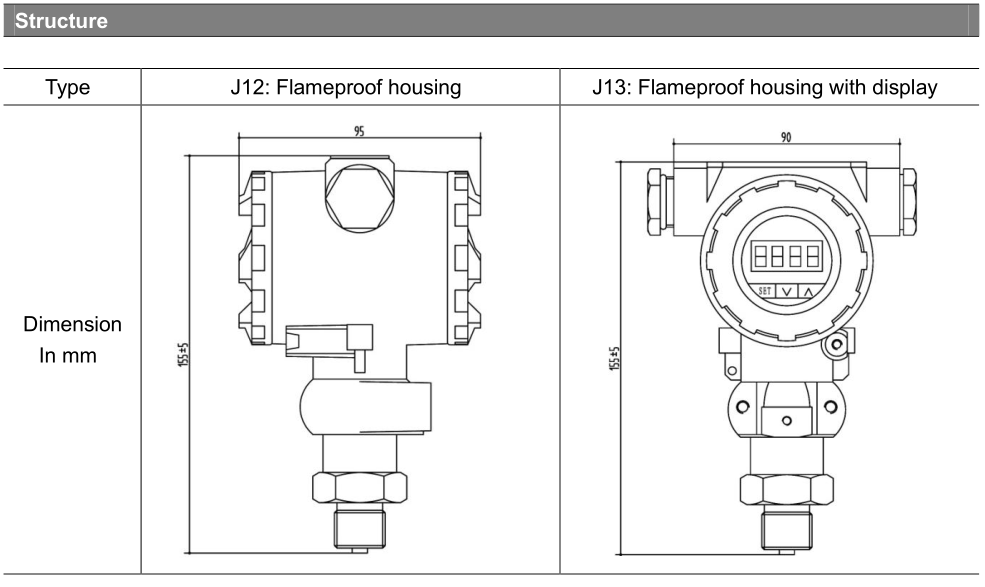

flameproof housing with display.
