Overview

WPM-80 is a high-precision intelligent digital pressure gauge. It has a high-precision sensor and displays pressure accurately in real time. It has advantages of high precision and good long term stability.
WPM-80  is equipped with a large size LCD, featuring with functions of zero clearing, backlight, on/off button, units switching and low pressure alarm. It is convenient to install and easy to operate.The housing and connector of WPM-80  are made of stainless steel 304 with excellent vibration resistance. It can be used to measure gas, liquid, oil and other non-corrosive medium of stainless steel.
WPM-80  is applicable to portable pressure measurement and equipment supporting and calibration fields.

Features

■ 4 digits LCD showing pressure accurately in real time, easy for observation
■ Various pressure units, zero clearing, backlight, on/off functions
■ Battery powered, low-power design, keeping working for 12 months
■ High-precision pressure sensor adopted

Application

■ Machinery and electronics
■ Supporting equipment of instruments
■ Pressure laboratory
■ Mechanical engineering automation

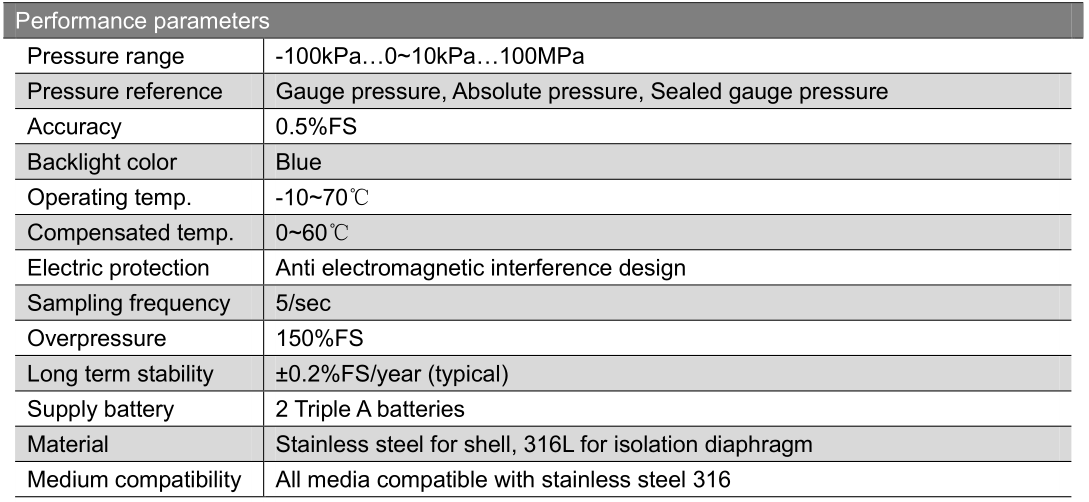

Technical Parameter

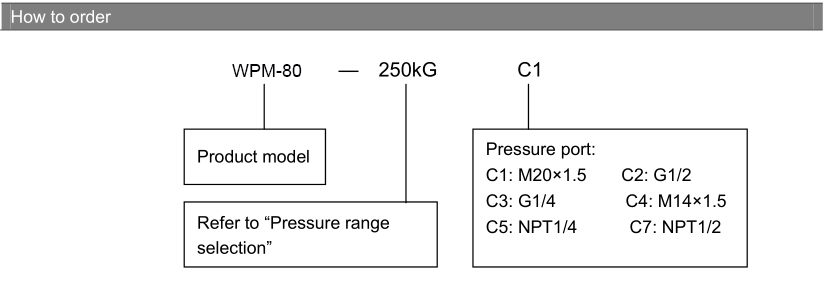

Example: WPM-80-250kGC1

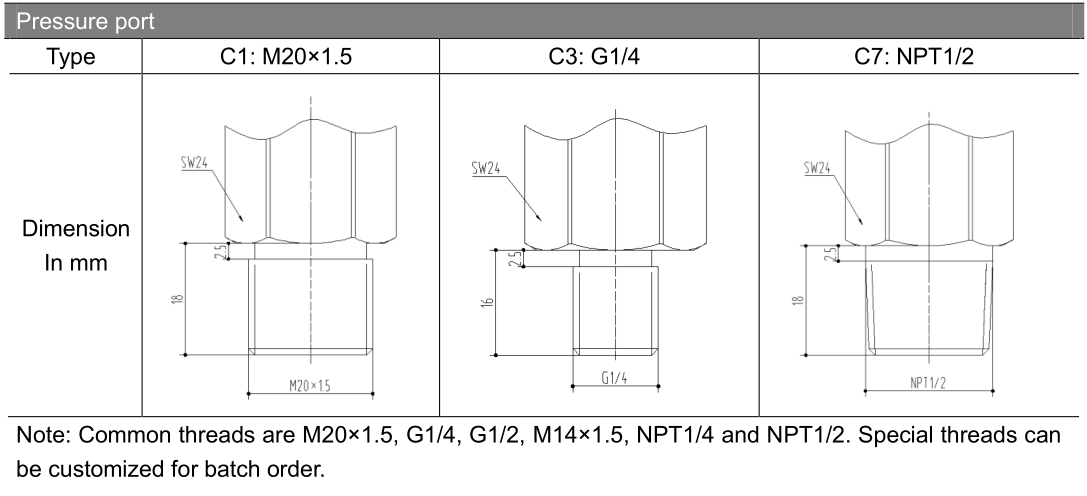

Refer to product model WPM-80, with pressure range 0~250kPa, gauge pressure, and pressure port M20×1.5.
