Overview

WPM-60 is a high-precision intelligent digital pressure gauge. It has a high-precision sensor and displays pressure accurately in real time. It has advantages of high precision
and good long term stability.WPM-60 is equipped with a large size LCD, featuring with functions of zero clearing, backlight, on/off button, units switching and low pressure alarm. It is convenient to install and easy to operate.The housing and connector of WPM-60 are made of stainless steel 304 with excellent vibration resistance. It can be used to
measure gas, liquid, oil and other non-corrosive medium of stainless steel.
WPM-60 is applicable to portable pressure measurement and equipment supporting and calibration fields.

Features

■ 4 digits LCD showing pressure accurately in real time, easy for observation
■ Various pressure units, zero clearing, backlight, on/off functions
■ Battery powered, low-power design keeping working for 12 months
■ All stainless steel shell, small size, low cost

Application

■ Machinery and electronics
■ Supporting equipment of instruments
■ Pressure laboratory
■ Mechanical engineering automation

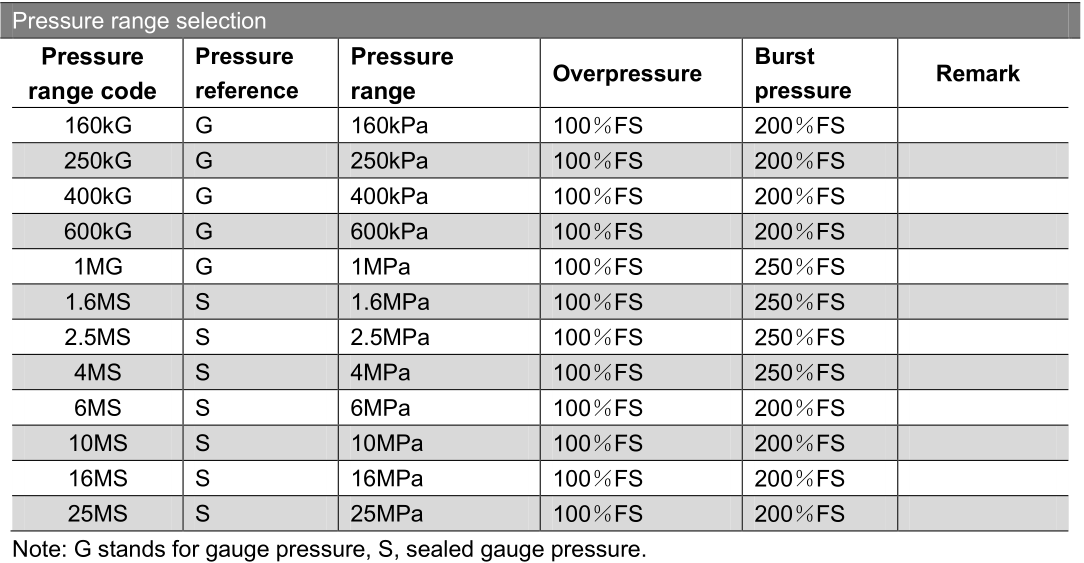

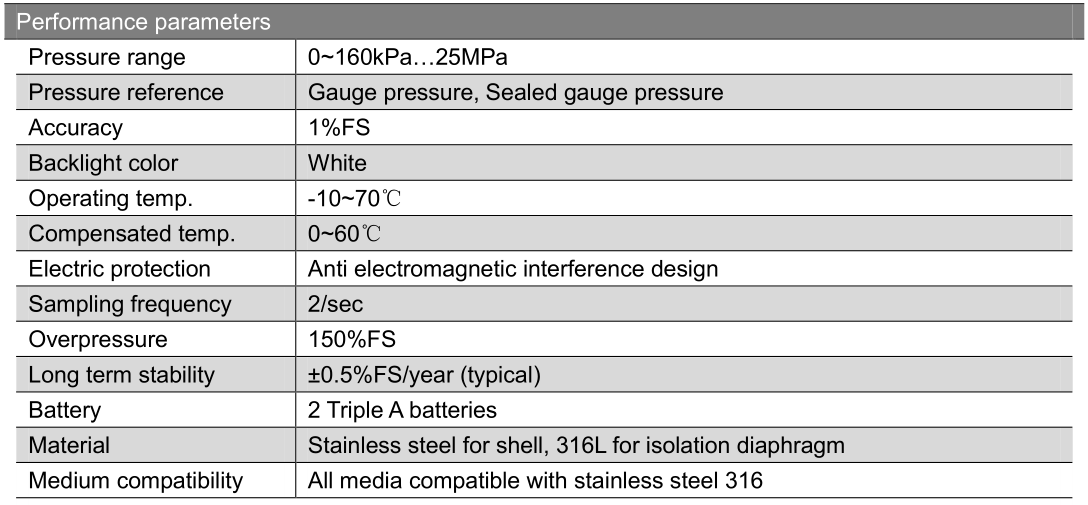

Technical Parameter

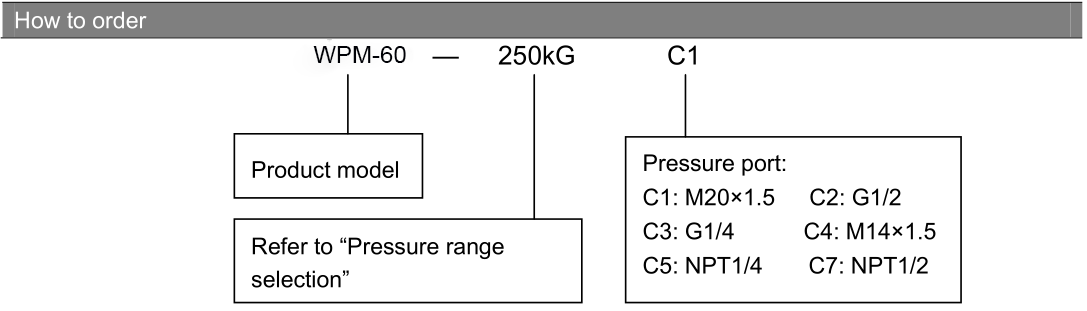

Note: Common threads are M20×1.5, G1/4, G1/2, M14×1.5, NPT1/4 and NPT1/2. Special threads can
be customized for batch order.
