Description
WST-38 is a head mount temperature transmitter with a single input. The single input accepts thermocouples, RTD, resistance or voltage source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA output for transmission to your system.
Features
Can convert all inputs to 4-20 mA
Input: thermocouples, RTD, resistance or voltage

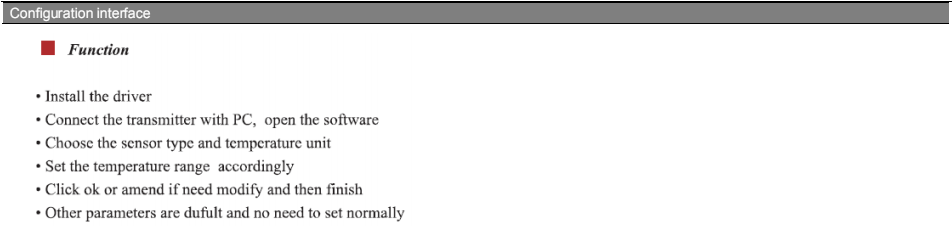

Configuration directly via PDA or PC
Build-in cold junction compensation
Available with screw-in temperature probe

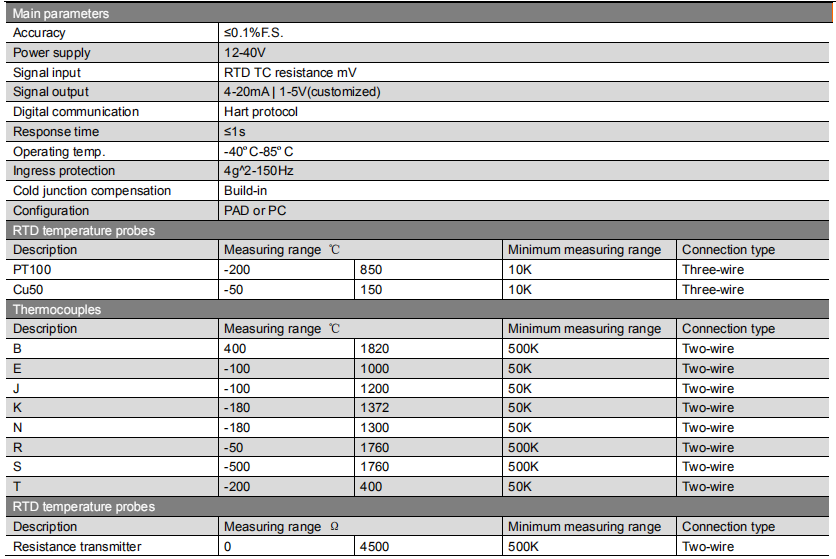

Technical Parameter
|
