Product overview

WST-22 Integrated Temperature Transmitter measures medium temperature by using the characteristics of platinum resistance, which changes with temperature change in a certain functional relationship. The product consists of a temperature sensor and a conversion circuit. It has advantages of stable performance, high sensitivity, and high reliability.
WST-22 adopts all-welded movable thread structure, which is easy to install. It is widely used in automatic temperature measurement and control systems for petroleum machinery, chemical machinery, pumps and compressors, electric power, boilers, and natural gas, etc.

Features

■ Movable connector, easy to install
■ High strength, high pressure resistance
■ Integrated structure
■ Long-term stable work
■ Fast response
■ Reliable structure

Applications

■ Equipment support
■ Automatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.
■ Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc.

Note: Torque depends on various factors such as material of gasket, supporting materials, lubrication of thread and pressure

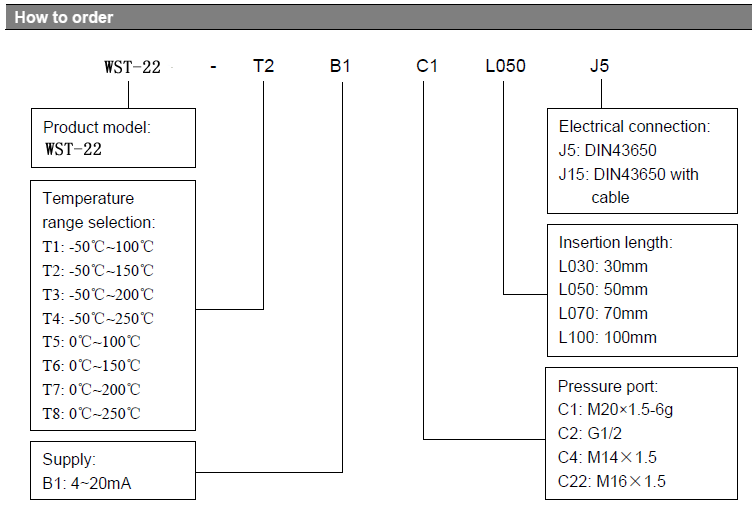

Example:WST-22-T2B1C1L050J5
Refer to product model WST-22 with temperature range -50℃~150℃, supply 16~36VDC, output signal 4~20mA, pressure port M20×1.5-6g, insertion length 50mm, and electrical connection DIN43650.


Ordering tips:

⑴ Ensure compatibility between measured media and contacting part of product.
⑵ For special requirements on the product appearance and performance parameters, customization is available.
