Product overview

WST-20EO Explosion Proof Temperature Transmitter measures medium temperature by using the characteristics of platinum resistance, which changes with temperature change in a certain functional relationship. It adopts imported high-performance, high-reliability platinum resistance, goes through precise temperature and non-linear compensation, and employs good performance modular signal processing technology to measure and calibrate medium temperature and output standard industrial control signals.
The product shell adopts all-stainless steel integrated processing, featuring with small size, fast thermal response, etc. The wire adopts special shielded wire which has a wide temperature range. WST-20EO is easy to install and has extremely high vibration resistance and shock resistance.

Features

■ Movable connector, easy to install
■ High strength, high pressure resistance
■ Integrated structure
■ Long-term stable work
■ Fast response
■ Reliable structure

Applications

■ Equipment support
■ Automatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.
■ Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc.

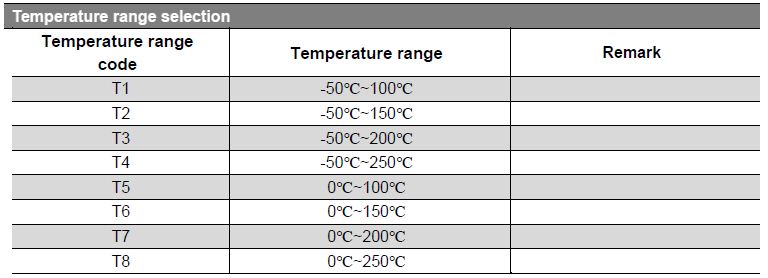

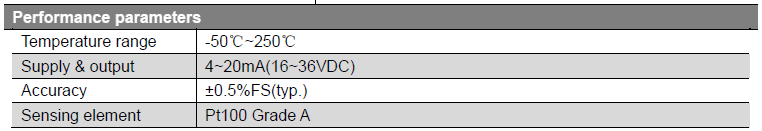

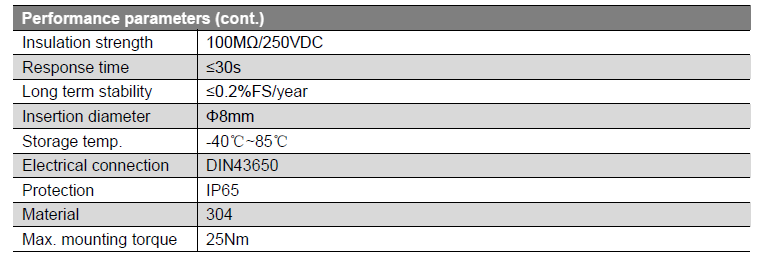

Technical Parameter

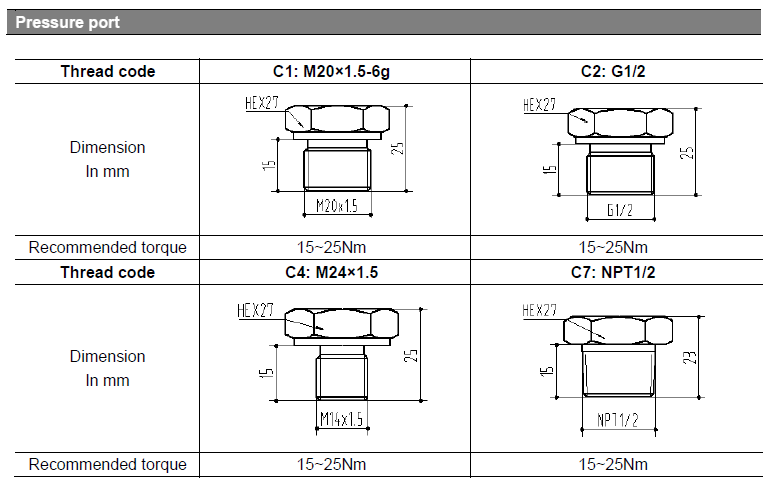

Note: Torque depends on various factors such as material of gasket, supporting materials, lubrication of thread and pressure.

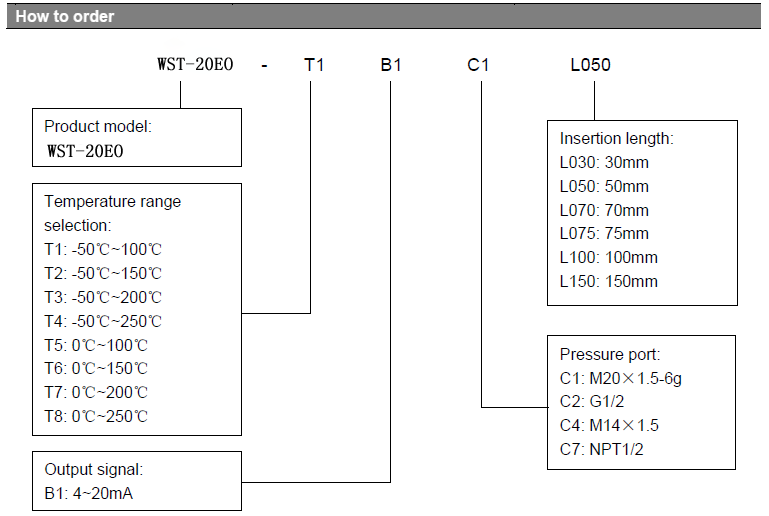

Example: WST-20EO-T1B1C1L050
Refer to product model PCT200E1, with temperature range -50℃~150℃, supply 16~36VDC, output signal 4~20mA, pressure port M20×1.5-6g, and insertion length 50mm.
Ordering tips:
⑴ Ensure compatibility between measured media and contacting part of product.
⑵ For special requirements on the product appearance and performance parameters, customization is available.
