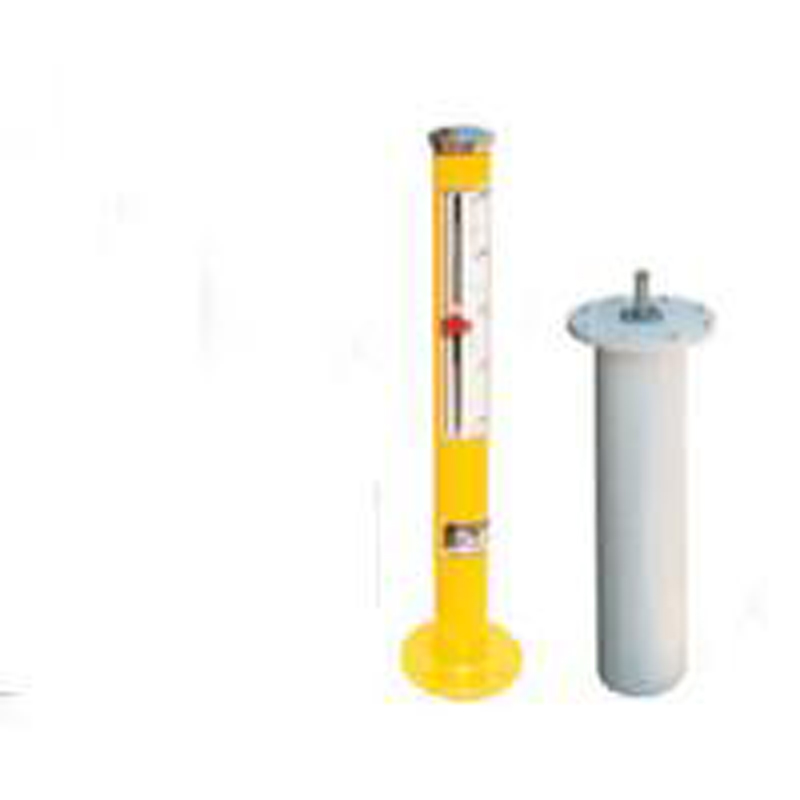

Outline drawing of improved UT-81

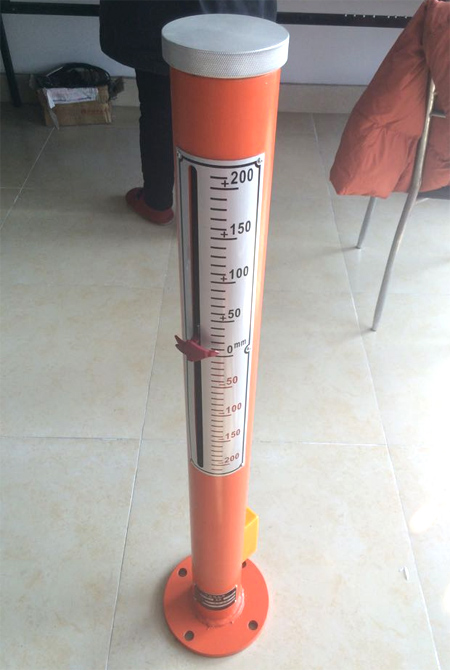

UT－81 type liquid level indicator can be divided into A, B and C three types.
UT－81A type: immersion type liquid level indicator.
UT－81B type: straight pipe liquid level indicator.
UT－81C type: straight pipe immersion type liquid level indicator (it is also known as combination of A and B).

Technical index:
1. Measuring range: ±100mm ±200mm ±300mm ±400mm (measuring range is customized by user)
2. Reference weight:
A type: ±200mm about 35Kg
B type: ±200mm about 40Kg
C type: ±200mm about 48Kg
3. Liquid to be measured: various steam turbine oils.
4. Accuracy: ≤±3mm (full measuring range)
5. Maximum temperature of liquid to be measured: ＜85℃
