Product overview

WST-20B Temperature Transmitter with Normal / Movable Connector is a specially designed transmitter for easy installation. It adopts imported high-performance, high-reliability platinum resistance, goes through precise temperature and non-linear compensation, and employs good performance modular signal processing technology to measure and calibrate medium temperature and output industrial control standard signals.
The product shell adopts all-stainless steel integrated processing, featuring small size, fast thermal response, etc. The wire adopts special shielded wire which has a wide temperature range. WST-20B is easy to install and has extremely high vibration resistance and shock resistance.

Features

■ Movable connector, easy to install
■ High strength, high pressure resistance
■ Integrated structure
■ Long-term stable work
■ Fast response
■ Reliable structure

Applications

■ Equipment support
■ Automatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.
■ Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc.

Technical Parameter

Note: Torque depends on various factors such as material of gasket, supporting materials, lubrication of thread and pressure.

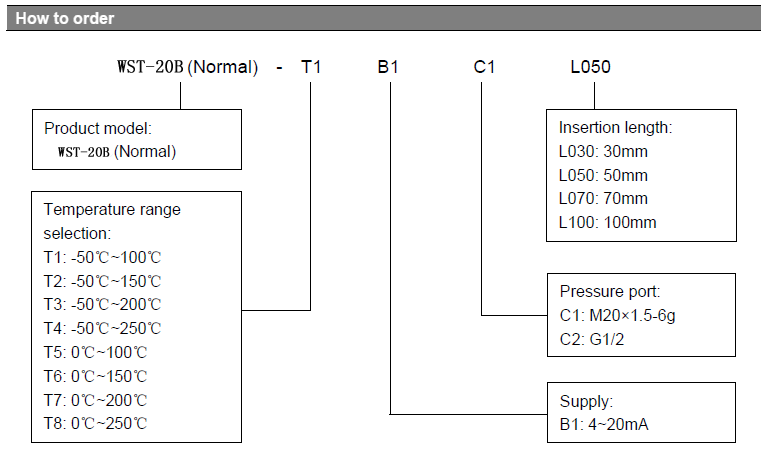

Example:WST-20B(Normal)-T2B1C1L050

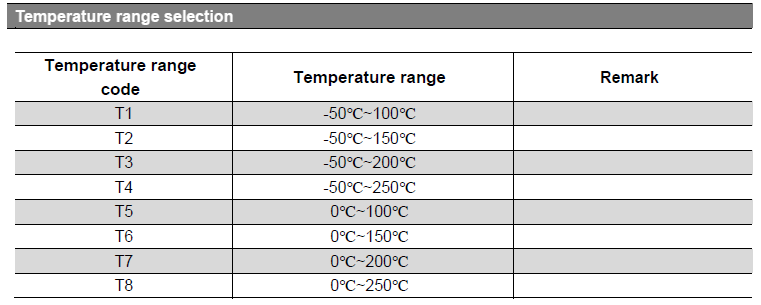

Refer to product model WST-20B(Normal), with temperature range -50℃~150℃, supply 16~36VDC, output signal 4~20mA, pressure port M20×1.5-6g, and insertion length 50mm.
