Description

WPTB-90 pressure transmitter is specially designed for small and medium equipment applications such as booster pumps and air compressors. It is also applicable to a wide range of industrial applications, with a variety of structures, output forms and pressure connections to meet the requirements of most applications. WPTB-90 is designed with compact structure which especially applies to the installation in small space.

Feature

■ Compact structure
■ Digital circuit compensation
■ Strong anti-interference, good long-term stability
■ Small diameter, small size, easy to install and use
■ Can measure absolute pressure, gauge pressure and sealed gauge pressure

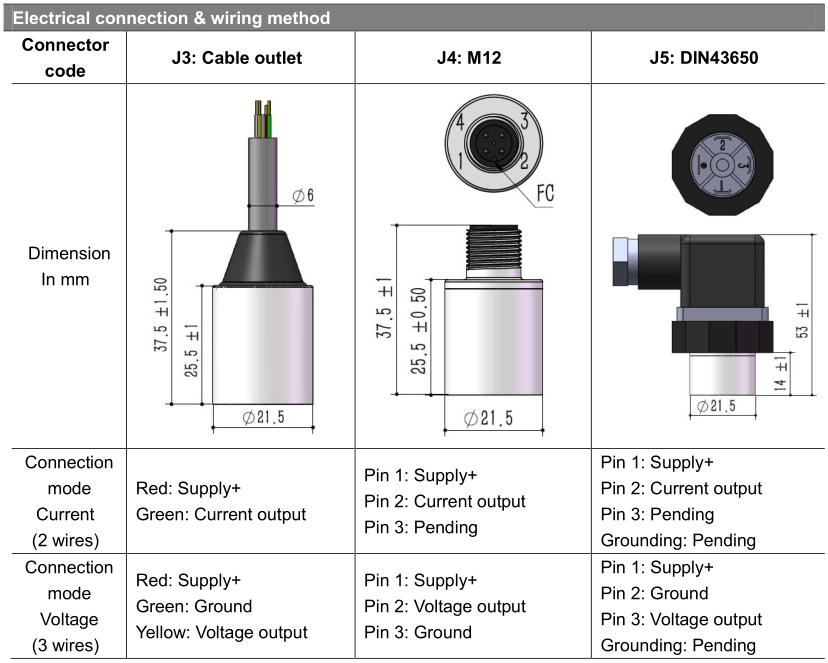

■ A variety of electrical connections
■ Liquid contacting diaphragm 316L
■ Suitable for mass production

Application

■ Air compressor
■ Hydraulic and pneumatic equipment
■ Servo valves and drive
■ Air conditioning systems
■ Piping systems

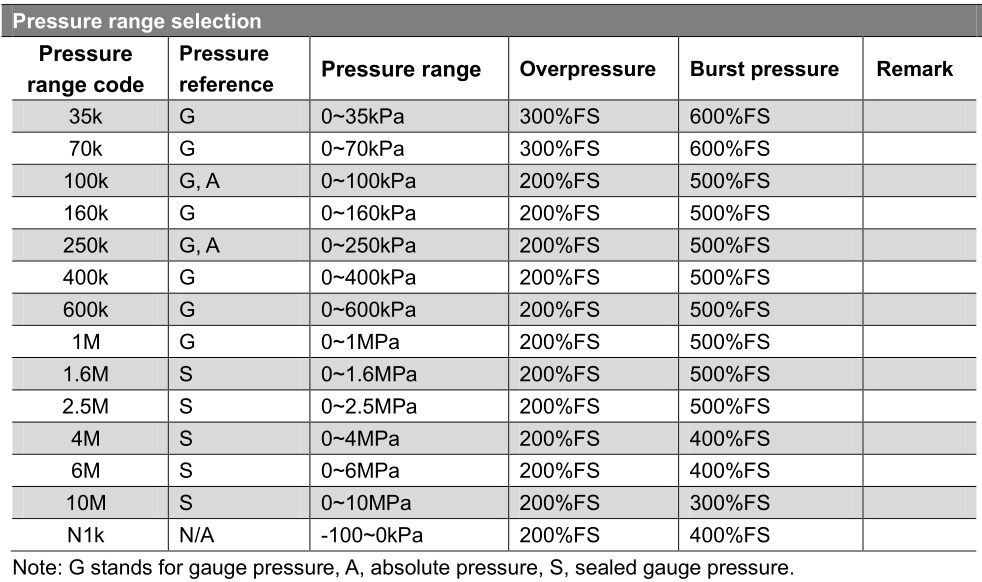

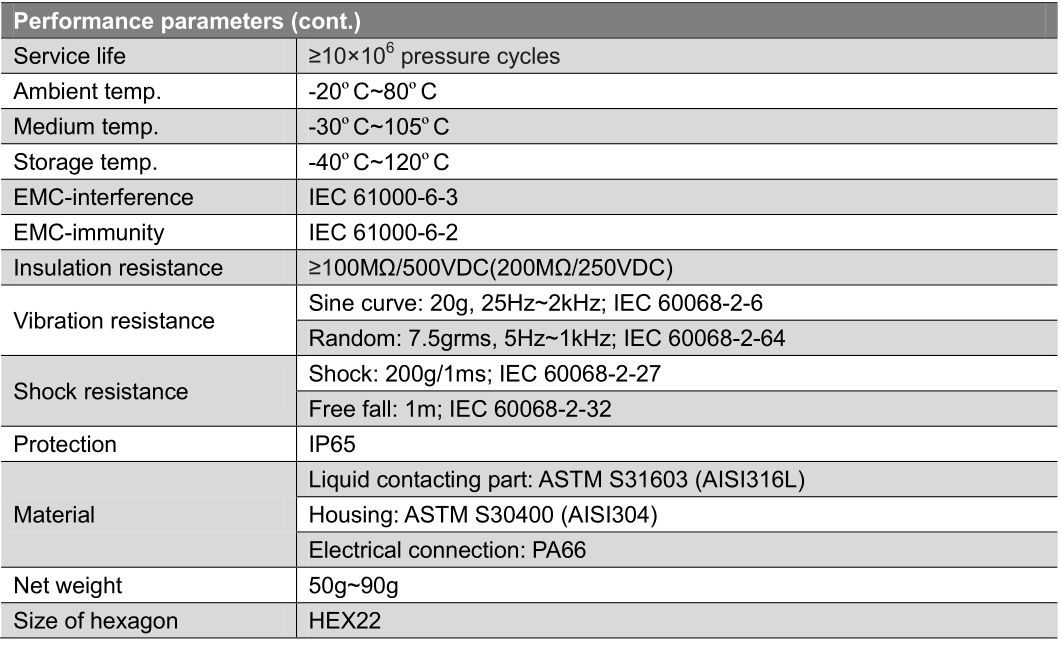

Technical Parameter
