Description

WPTB-40 non-cavity flush pressure transmitter adopts high-precision foil strain gauge, equipped with a variety of characteristic amplifying circuits, such as anti-interference type, high-temperature resistant type, intrinsically safe explosion-proof type, etc., making the product suitable for various working environments. With non-cavity structure, WPTB-40 is particularly suitable for measuring fluids with high viscosity, mud, cement, crude oil and other granular fluids.

Feature

■ High-precision foil strain gauge
■ Non-cavity measurement diaphragm
■ Wear resistance
■ Wide operating temperature range
■ Large DIN connector, easy installation and high reliability
■ Optimized circuit and installation structure improve the anti-vibration ability and stability

Application

■ Heavy equipment support
■ High pressure industry
■ High load industry
■ High impact fields
■ Frequent overloaded areas

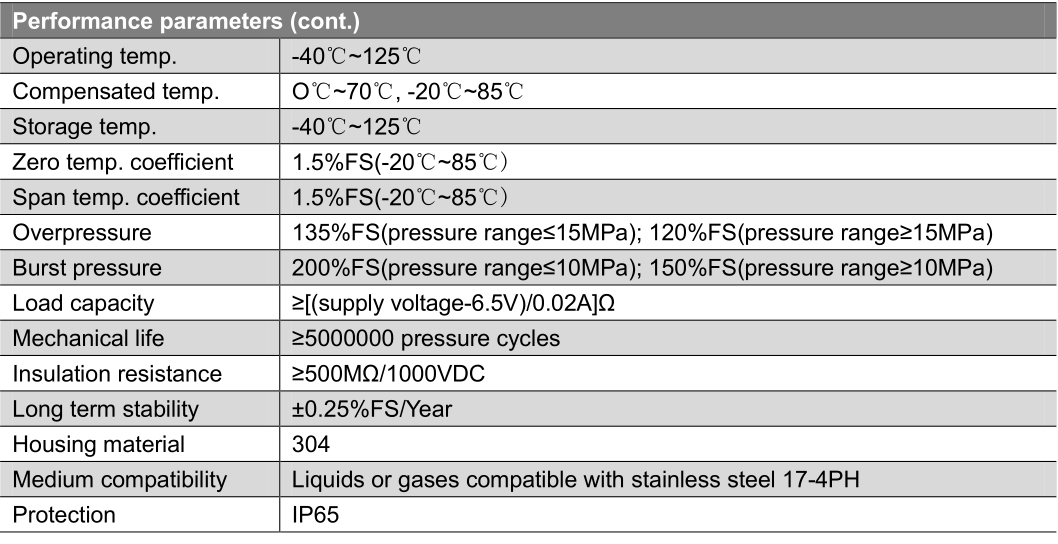

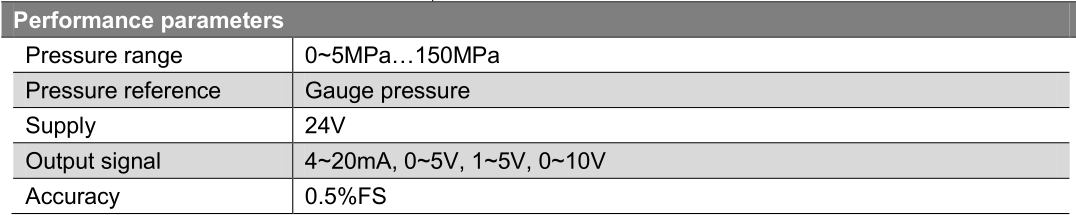

Technical Parameter
