Description

WPTB-300 high range pressure transmitter chooses high precision foil strain gauge as sensing element, has a unique integrated elastic structure, good stability and reliability. Signal processing circuit is located in the stainless steel casing, which has the circuit through strict aging process processing, at the same time also has a good linear compensation function. This product is mainly used for high pressure, super high pressure and impact pressure greatly.

Advantage

 Measuring diaphragm and pressure interface one-piece structure
 Thread interface USES 7 degrees of taper sealing surface
 Resistance to vibration, the instantaneous pressure impact resistance
 Can measure pressure up to 600MPa
 With German import plugs, IP65 standard seal

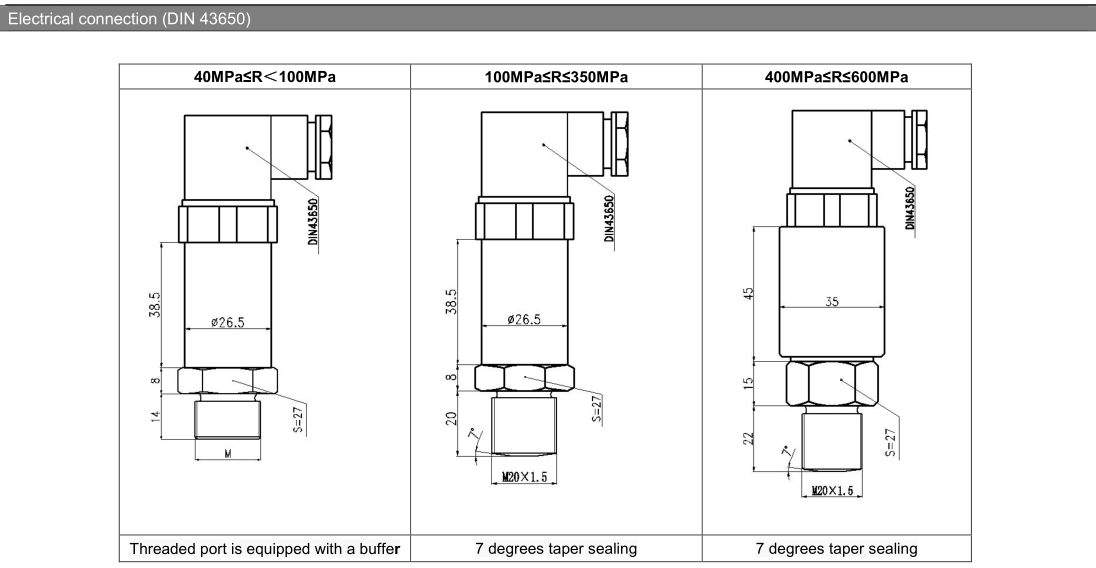

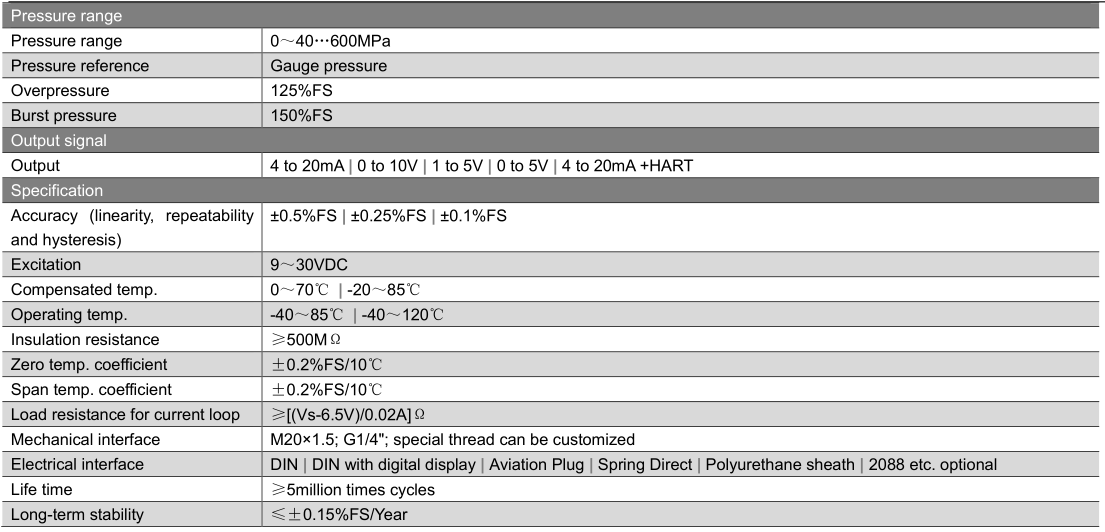

Technical Parameter
