Description

WPTB-8 pressure transmitter is equipped with an integrated pulse buffer, which is specially designed for hydraulic industry applications, in which severe impact of media exists, such as cavitation, hydraulic hammer and pressure peak. WPTB-8 carries out reliable pressure measurement even in harsh environmental conditions. WPTB-8 provides various output signals and pressure references. The pressure range is from 0 ~ 100kPa to 0 ~ 60MPa. Excellent seismic performance, rugged construction and high-grade EMC / EMI protection enable WPTB-8 to meet the stringent requirements of industrial use.

Advantage

■ 316L stainless steel diaphragm structure

■ High precision stainless steel structure

■ Suitable for harsh industrial environment.

■ It has strong anti-interference and long term stability.

■ It has diversified forms and is easy to install and use.

■ Resistance to cavitation, liquid attack and pressure peak

■ Excellent seismic performance.

Application

■ Hydraulic industry

■ Process control

■ Aeronautics and Astronautics

■ Pipe system

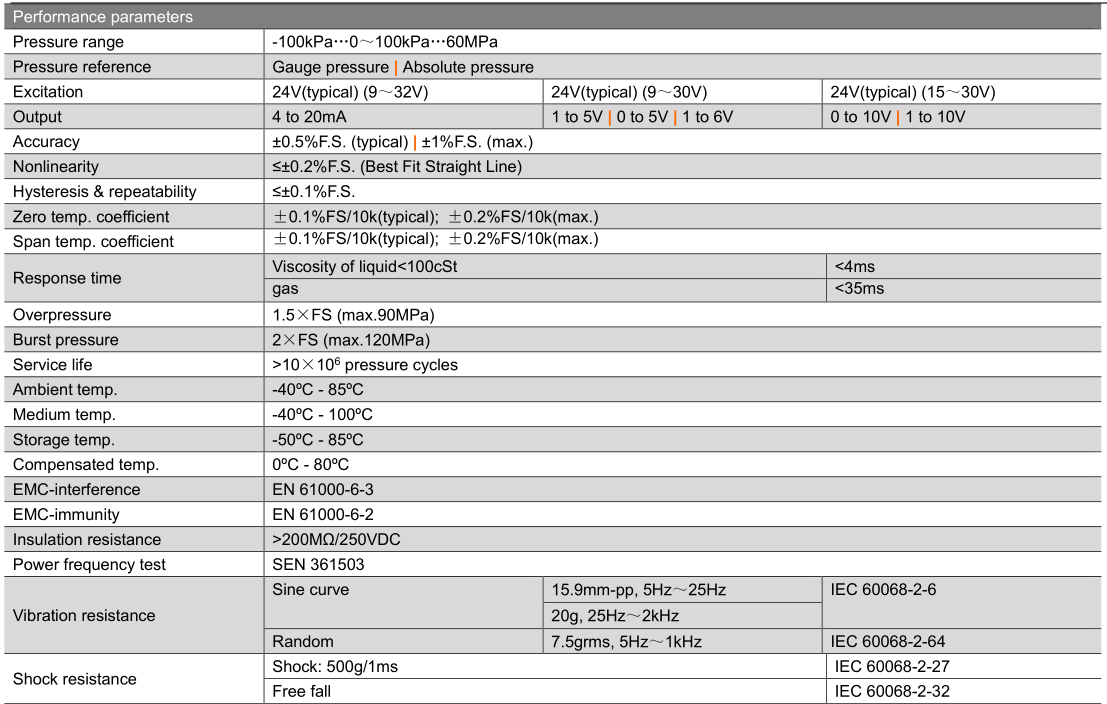

Technical Parameter
